  • YMW 389626 5/8-18.00TPI Cut Spiral Point Plug 4.0P-6.0P Cobalt M42 Uncoated

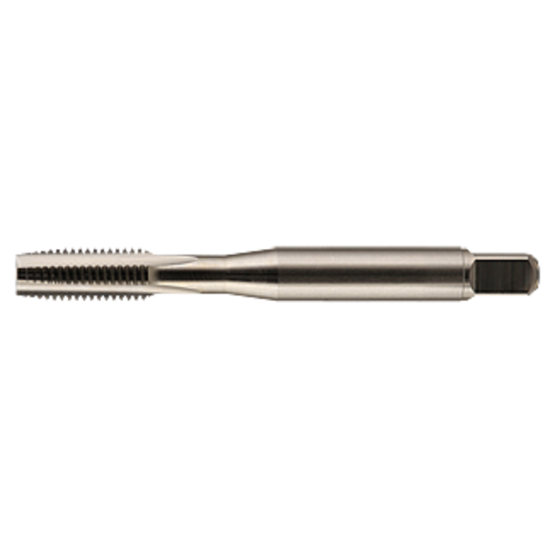

Picture of YMW 389626 5/8-18.00TPI Cut Spiral Point Plug 4.0P-6.0P Cobalt M42 Uncoated

YMW 389626 5/8-18.00TPI Cut Spiral Point Plug 4.0P-6.0P Cobalt M42 Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YMW
SKU: YMW389626
Delivery date: 3-5 days
$62.12

Cutting Edge Definition

M42® is a premium cobalt high-speed steel with high hardness and superior hot hardness. The combination of composition and properties allows for machining high-strength and pre-hardened steels, high-hardness alloys, and the difficult-to-machine, nonferrous superalloys.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Shipping State California
Application Through Hole Tapping, Plug Tapping, Tapping, Cut Tapping
Performance Rating High Performance
Package Size 1
Dimensional Specifications
Thread Pitch 18.00TPI
Cut Rating <48HRC Steel, Aluminum, Ductile Iron, Gray Iron
Shank/Pilot Dia 0.4800 12.19MM
Flute Direction R - Right
Length Type Standard
Thread Size 5/8"
Overall Len 3.8110 96.80MM
Tap Type Plug
Tool Material Steel
Tap Square 0.3600
Thread Type NF/UNF/UNEF
Dimension Standard ANSI/ANSI
Machine Side Connection Type Tap Collet
Drill Range 0.5669 14.40MM - 0.5815 14.77MM
Tap Style Cut Spiral Point
Flutes/Inserts 3
Tap Chamfer 4.0P-6.0P
Thread Limit H3/GH3
Cutting & Machining Properties
Cutting Edge Mat Cobalt M42
Coolant Thru No
Industry-Specific Applications
Agricultural YES
Automotive Yes
Job Shop Yes
Mold Yes
