  • YMW 389625 5/8-11.00TPI Cut Spiral Point Plug 4.0P-6.0P Cobalt M42 Uncoated

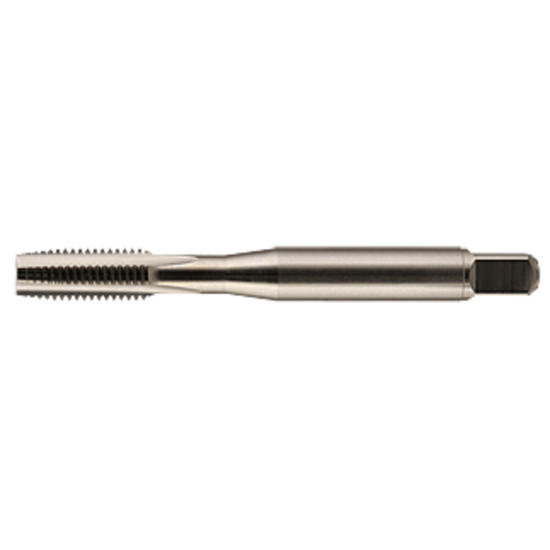

Picture of YMW 389625 5/8-11.00TPI Cut Spiral Point Plug 4.0P-6.0P Cobalt M42 Uncoated

YMW 389625 5/8-11.00TPI Cut Spiral Point Plug 4.0P-6.0P Cobalt M42 Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YMW
SKU: YMW389625
Delivery date: 3-5 days
$62.12

Cutting Edge Definition

M42® is a premium cobalt high-speed steel with high hardness and superior hot hardness. The combination of composition and properties allows for machining high-strength and pre-hardened steels, high-hardness alloys, and the difficult-to-machine, nonferrous superalloys.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Cut Tapping, Plug Tapping, Tapping, Through Hole Tapping
Performance Rating High Performance
Made In USA No
Shipping State California
Dimensional Specifications
Shank/Pilot Dia 0.4800 12.19MM
Dimension Standard ANSI/ANSI
Tap Chamfer 4.0P-6.0P
Thread Pitch 11.00TPI
Cut Rating <48HRC Steel, Aluminum, Ductile Iron, Gray Iron
Machine Side Connection Type Tap Collet
Tap Style Cut Spiral Point
Thread Type NC/UNC
Thread Limit H3/GH3
Flute Direction R - Right
Length Type Standard
Flutes/Inserts 3
Drill Range 0.5303 13.47MM - 0.5539 14.07MM
Tool Material Steel
Tap Square 0.3600
Thread Size 5/8"
Overall Len 3.8110 96.80MM
Tap Type Plug
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Cobalt M42
Industry-Specific Applications
Agricultural YES
Automotive Yes
Job Shop Yes
Mold Yes
