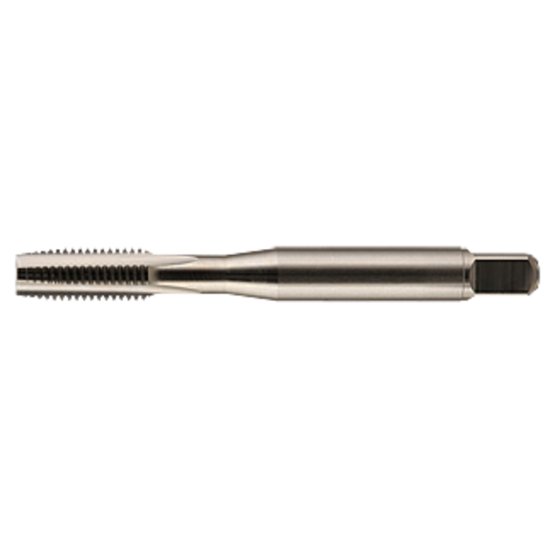

Picture of YMW 389625 5/8-11.00TPI Cut Spiral Point Plug 4.0P-6.0P Cobalt M42 Uncoated

YMW 389625 5/8-11.00TPI Cut Spiral Point Plug 4.0P-6.0P Cobalt M42 Uncoated

Part Number: YMW389625
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$71.44
SKU: 1173831

Description

YMW 5/8"x11.00TPI Cut Spiral Point Plug 4.0P-6.0P Cobalt M42 Uncoated H3/GH3 NC/UNC Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State California
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type NC/UNC
Flute Direction RIGHT
Tap Style Cut Spiral Point
Tap Type Plug
Tap Chamfer 4.0P-6.0P
Dimensions & Sizing
Overall Length 3.8110 96.80MM
Shank/Pilot Dia 0.4800 12.19MM
Flutes/Inserts 3
Thread Pitch 11.00TPI
Thread Size 5/8"
Tap Drill Range 0.5303 13.47MM - 0.5539 14.07MM
Tap Square 0.3600
Performance & Capacity
Cut Rating <48HRC Steel, Aluminum, Gray Iron, Ductile Iron
Performance Rating High Performance
Tolerances & Accuracy
Thread Limit H3/GH3
Materials & Finish
Tool Material Steel
Cutting Edge Mat Cobalt M42
Standards & Identification
Dimension Standard ANSI/ANSI
