  • YMW 389621 1/2-13.00TPI Cut Spiral Point Plug 4.0P-6.0P Cobalt M42 Uncoated

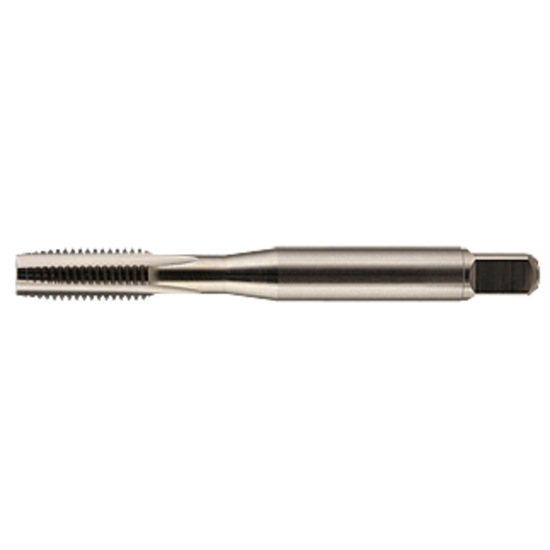

Picture of YMW 389621 1/2-13.00TPI Cut Spiral Point Plug 4.0P-6.0P Cobalt M42 Uncoated

YMW 389621 1/2-13.00TPI Cut Spiral Point Plug 4.0P-6.0P Cobalt M42 Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YMW
SKU: YMW389621
Delivery date: 3-5 days
$42.39

Cutting Edge Definition

M42® is a premium cobalt high-speed steel with high hardness and superior hot hardness. The combination of composition and properties allows for machining high-strength and pre-hardened steels, high-hardness alloys, and the difficult-to-machine, nonferrous superalloys.

Products specifications
Attribute name Attribute value
General Product Information
Application Cut Tapping, Tapping, Plug Tapping, Through Hole Tapping
Performance Rating High Performance
Package Size 1
Made In USA No
Shipping State California
Dimensional Specifications
Tap Type Plug
Dimension Standard ANSI/ANSI
Flutes/Inserts 3
Tap Chamfer 4.0P-6.0P
Thread Pitch 13.00TPI
Cut Rating <48HRC Steel, Aluminum, Ductile Iron, Gray Iron
Shank/Pilot Dia 0.3670 9.32MM
Overall Len 3.3740 85.70MM
Drill Range 0.4201 10.67MM - 0.4398 11.17MM
Thread Size 1/2"
Thread Type NC/UNC
Thread Limit H3/GH3
Flute Direction R - Right
Length Type Standard
Tool Material Steel
Machine Side Connection Type Tap Collet
Tap Square 0.2750
Tap Style Cut Spiral Point
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Cobalt M42
Industry-Specific Applications
Agricultural YES
Mold Yes
Automotive Yes
Job Shop Yes
