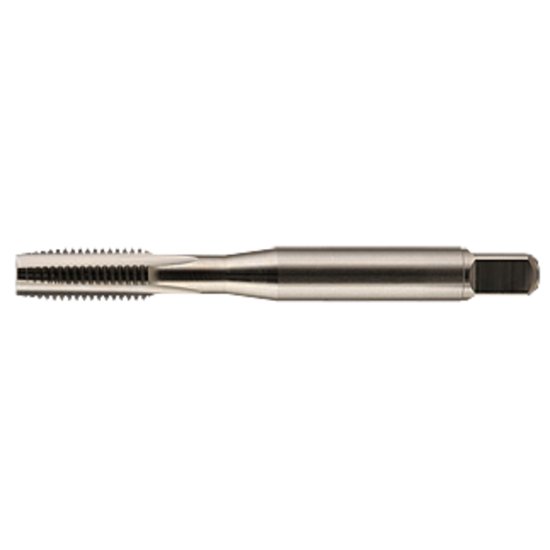

Picture of YMW 389619TIn 7/16-14.00TPI Cut Spiral Point Plug 4.0P-6.0P Cobalt M42 TiN

YMW 389619TIn 7/16-14.00TPI Cut Spiral Point Plug 4.0P-6.0P Cobalt M42 TiN

Part Number: YMW389619TIN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YMW
SKU: 1173820
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
YMW 7/16"x14.00TPI Cut Spiral Point Plug 4.0P-6.0P Cobalt M42 TiN H3/GH3 NC/UNC Steel Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools
Products specifications
Attribute name Attribute value
Shipping State California
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat Cobalt M42
Machine Side Connection Type Tap Collet
Cut Rating <48HRC Steel, Aluminum, Gray Iron, Ductile Iron
Coating TIN
Overall Length 3.1600 80.26MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.3230 8.20MM - P
Flutes/Inserts 3
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 14.00TPI
Thread Type NC/UNC
Flute Direction RIGHT
Thread Size 7/16"
Thread Limit H3/GH3
Tap Style Cut Spiral Point
Tap Type Plug
Dimension Standard ANSI/ANSI
Tap Drill Range 0.3630 9.22MM - 0.3815 9.69MM
Tap Square 0.2420
Tap Chamfer 4.0P-6.0P
