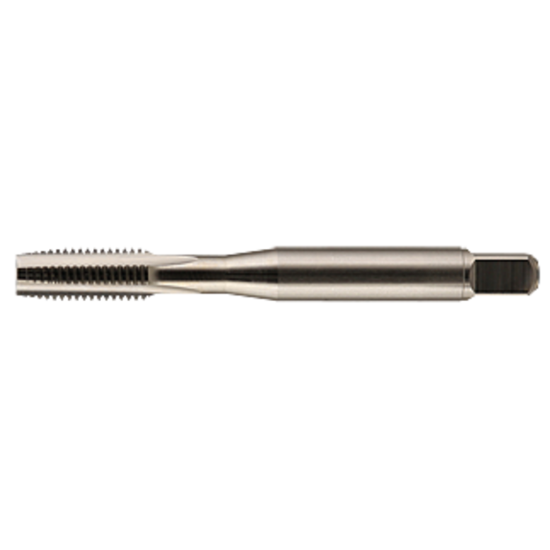

Picture of YMW 389618 3/8-24.00TPI Cut Spiral Point Plug 4.0P-6.0P Cobalt M42 Uncoated

YMW 389618 3/8-24.00TPI Cut Spiral Point Plug 4.0P-6.0P Cobalt M42 Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YMW
SKU: YMW389618
Delivery date: 3-5 days
$29.29

Cutting Edge Definition

M42® is a premium cobalt high-speed steel with high hardness and superior hot hardness. The combination of composition and properties allows for machining high-strength and pre-hardened steels, high-hardness alloys, and the difficult-to-machine, nonferrous superalloys.

Products specifications
Attribute name Attribute value
General Product Information
Application Through Hole Tapping, Cut Tapping, Tapping, Plug Tapping
Performance Rating High Performance
Package Size 1
Made In USA No
Shipping State California
Dimensional Specifications
Tool Material Steel
Thread Pitch 24.00TPI
Thread Type NF/UNF/UNEF
Dimension Standard ANSI/ANSI
Drill Range 0.3315 8.42MM - 0.3421 8.69MM
Tap Chamfer 4.0P-6.0P
Thread Size 3/8"
Cut Rating <48HRC Steel, Aluminum, Ductile Iron, Gray Iron
Tap Square 0.2860
Flutes/Inserts 3
Tap Type Plug
Machine Side Connection Type Tap Collet
Tap Style Cut Spiral Point
Thread Limit H3/GH3
Flute Direction R - Right
Shank/Pilot Dia 0.3810 9.68MM
Overall Len 2.9370 74.60MM
Length Type Standard
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Cobalt M42
Industry-Specific Applications
Automotive Yes
Job Shop Yes
Agricultural YES
Mold Yes
