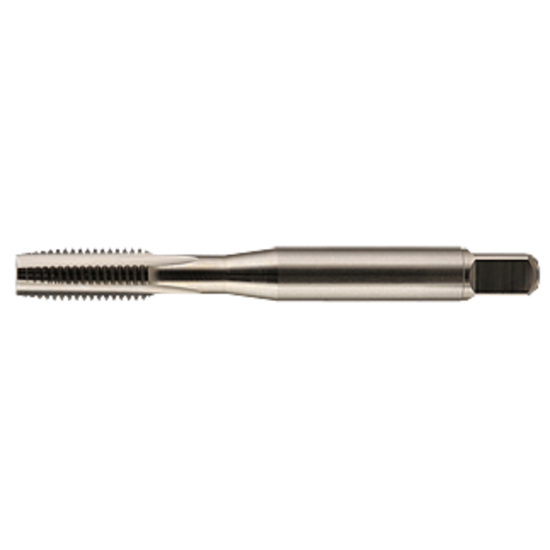

YMW 389617TIALN 3/8-16.00TPI Cut Spiral Point Plug 4.0P-6.0P Cobalt M42 TiAlN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YMW
SKU: YMW389617TIALN
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

M42® is a premium cobalt high-speed steel with high hardness and superior hot hardness. The combination of composition and properties allows for machining high-strength and pre-hardened steels, high-hardness alloys, and the difficult-to-machine, nonferrous superalloys.

Grade and Coating Description

Titanium aluminium nitride (TiAlN) or aluminium titanium nitride (AlTiN; for aluminium contents higher than 50%) is a group of metastable hard coatings consisting of nitrogen and the metallic elements aluminium and titanium. This compound as well as similar compounds(such as TiN and TiCN) are most notably used for coating machine tools such and endmills and drills to change their properties, such as increased thermal stability and/or wear resistance. Four important compositions (metal content 100 wt.%) are deposited in industrial scale by physical vapor deposition methods:

Products specifications
Attribute name Attribute value
General Product Information
Coating TiAlN
Package Size 1
Application Cut Tapping, Tapping, Plug Tapping, Through Hole Tapping
Performance Rating High Performance
Made In USA No
Shipping State California
Dimensional Specifications
Thread Size 3/8"
Thread Type NC/UNC
Thread Limit H3/GH3
Flute Direction R - Right
Shank/Pilot Dia 0.3810 9.68MM
Machine Side Connection Type Tap Collet
Tap Style Cut Spiral Point
Tool Material Steel
Cut Rating <48HRC Steel, Aluminum, Ductile Iron, Gray Iron
Tap Square 0.2860
Drill Range 0.3429 8.71MM - 0.3516 8.93MM
Tap Type Plug
Flutes/Inserts 3
Tap Chamfer 4.0P-6.0P
Thread Pitch 16.00TPI
Dimension Standard ANSI/ANSI
Overall Len 2.9370 74.60MM
Length Type Standard
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Cobalt M42
Industry-Specific Applications
Job Shop Yes
Mold Yes
Agricultural YES
Automotive Yes
