  • YMW 389617 3/8-16.00TPI Cut Spiral Point Plug 4.0P-6.0P Cobalt M42 Uncoated

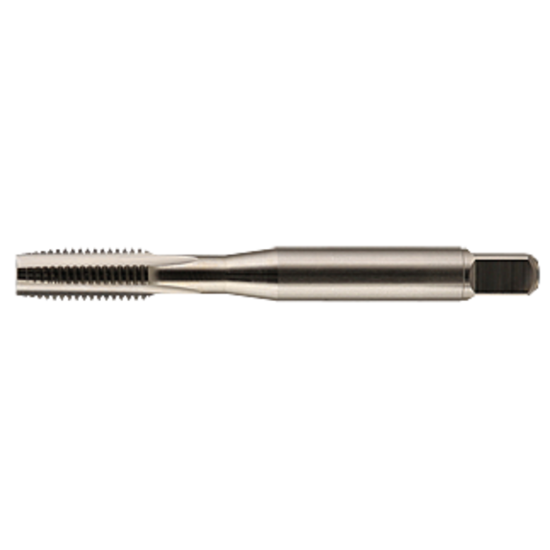

Picture of YMW 389617 3/8-16.00TPI Cut Spiral Point Plug 4.0P-6.0P Cobalt M42 Uncoated

YMW 389617 3/8-16.00TPI Cut Spiral Point Plug 4.0P-6.0P Cobalt M42 Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YMW
SKU: YMW389617
Delivery date: 3-5 days
$29.29

Cutting Edge Definition

M42® is a premium cobalt high-speed steel with high hardness and superior hot hardness. The combination of composition and properties allows for machining high-strength and pre-hardened steels, high-hardness alloys, and the difficult-to-machine, nonferrous superalloys.

Products specifications
Attribute name Attribute value
General Product Information
Application Plug Tapping, Cut Tapping, Tapping, Through Hole Tapping
Made In USA No
Shipping State California
Performance Rating High Performance
Package Size 1
Dimensional Specifications
Flutes/Inserts 3
Thread Pitch 16.00TPI
Drill Range 0.3429 8.71MM - 0.3516 8.93MM
Tap Type Plug
Thread Size 3/8"
Thread Type NC/UNC
Thread Limit H3/GH3
Flute Direction R - Right
Shank/Pilot Dia 0.3810 9.68MM
Length Type Standard
Dimension Standard ANSI/ANSI
Tap Chamfer 4.0P-6.0P
Cut Rating <48HRC Steel, Aluminum, Ductile Iron, Gray Iron
Tap Square 0.2860
Machine Side Connection Type Tap Collet
Tap Style Cut Spiral Point
Tool Material Steel
Overall Len 2.9370 74.60MM
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Cobalt M42
Industry-Specific Applications
Mold Yes
Agricultural YES
Automotive Yes
Job Shop Yes
