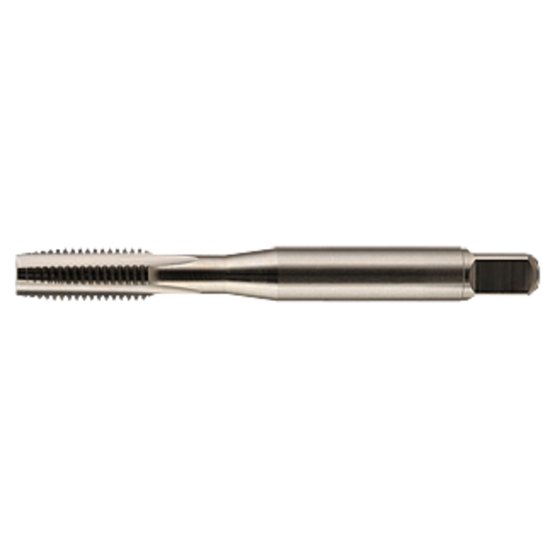

Picture of YMW 389616TIn 5/16-24.00TPI Cut Spiral Point Plug 4.0P-6.0P Cobalt M42 Uncoated

YMW 389616TIn 5/16-24.00TPI Cut Spiral Point Plug 4.0P-6.0P Cobalt M42 Uncoated

Part Number: YMW389616TIN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YMW
SKU: 1173810
Vendor: Sussex Tool and Supply
$27.52
YMW 5/16"x24.00TPI Cut Spiral Point Plug 4.0P-6.0P Cobalt M42 Uncoated H3/GH3 NF/UNF/UNEF Steel
Products specifications
Attribute name Attribute value
Shipping State California
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat Cobalt M42
Machine Side Connection Type Tap Collet
Cut Rating <48HRC Steel, Aluminum, Gray Iron, Ductile Iron
Overall Length 2.7200 69.09MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.3180 8.08MM
Flutes/Inserts 3
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 24.00TPI
Thread Type NF/UNF/UNEF
Flute Direction RIGHT
Thread Size 5/16"
Thread Limit H3/GH3
Tap Style Cut Spiral Point
Tap Type Plug
Dimension Standard ANSI/ANSI
Tap Drill Range 0.2689 6.83MM - 0.2799 7.11MM
Tap Square 0.2380
Tap Chamfer 4.0P-6.0P
