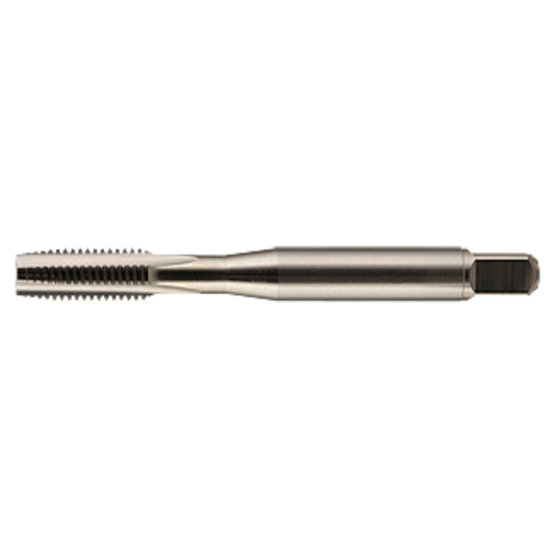

YMW 389616 5/16-24.00TPI Cut Spiral Point Plug 4.0P-6.0P Cobalt M42 TiCN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YMW
SKU: YMW389616
Delivery date: 3-5 days
$24.81

Cutting Edge Definition

M42® is a premium cobalt high-speed steel with high hardness and superior hot hardness. The combination of composition and properties allows for machining high-strength and pre-hardened steels, high-hardness alloys, and the difficult-to-machine, nonferrous superalloys.

Grade and Coating Description

Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.

Products specifications
Attribute name Attribute value
General Product Information
Application Through Hole Tapping, Cut Tapping, Tapping, Plug Tapping
Made In USA No
Shipping State California
Coating TiCN
Package Size 1
Performance Rating High Performance
Dimensional Specifications
Thread Size 5/16"
Flute Direction R - Right
Shank/Pilot Dia 0.3180 8.08MM
Overall Len 2.7200 69.09MM
Length Type Standard
Cut Rating <48HRC Steel, Aluminum, Ductile Iron, Gray Iron
Thread Pitch 24.00TPI
Flutes/Inserts 3
Drill Range 0.2689 6.83MM - 0.2799 7.11MM
Tap Chamfer 4.0P-6.0P
Thread Limit H3/GH3
Machine Side Connection Type Tap Collet
Tap Style Cut Spiral Point
Thread Type NF/UNF/UNEF
Dimension Standard ANSI/ANSI
Tap Square 0.2380
Tap Type Plug
Tool Material Steel
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Cobalt M42
Industry-Specific Applications
Automotive Yes
Agricultural YES
Job Shop Yes
Mold Yes
