  • YMW 389614TIN 1/4-28.00TPI Cut Spiral Point Plug 4.0P-6.0P Cobalt M42 TiN

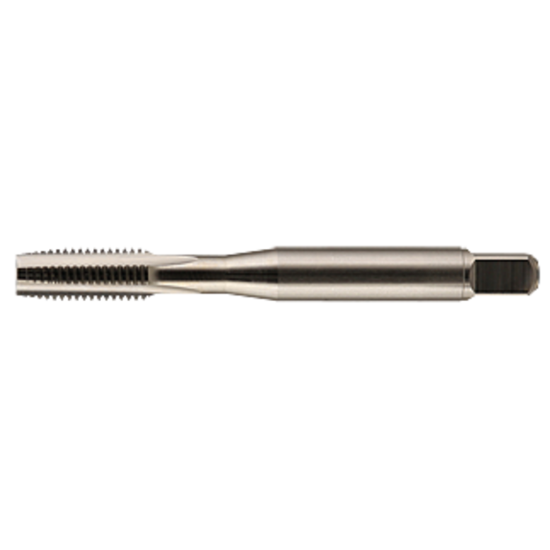

Picture of YMW 389614TIN 1/4-28.00TPI Cut Spiral Point Plug 4.0P-6.0P Cobalt M42 TiN

YMW 389614TIN 1/4-28.00TPI Cut Spiral Point Plug 4.0P-6.0P Cobalt M42 TiN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YMW
SKU: YMW389614TIN
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

M42® is a premium cobalt high-speed steel with high hardness and superior hot hardness. The combination of composition and properties allows for machining high-strength and pre-hardened steels, high-hardness alloys, and the difficult-to-machine, nonferrous superalloys.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Application Plug Tapping, Through Hole Tapping, Cut Tapping, Tapping
Coating TiN
Package Size 1
Shipping State California
Made In USA No
Performance Rating High Performance
Dimensional Specifications
Thread Size 1/4"
Machine Side Connection Type Tap Collet
Tap Style Cut Spiral Point
Thread Pitch 28.00TPI
Drill Range 0.2244 5.70MM - 0.2220 5.64MM
Shank/Pilot Dia 0.2550 6.48MM
Tap Type Plug
Cut Rating <48HRC Steel, Aluminum, Ductile Iron, Gray Iron
Overall Len 2.5000 63.50MM
Tap Square 0.1910
Tool Material Steel
Thread Limit H3/GH3
Flute Direction R - Right
Length Type Standard
Thread Type NF/UNF/UNEF
Dimension Standard ANSI/ANSI
Flutes/Inserts 3
Tap Chamfer 4.0P-6.0P
Cutting & Machining Properties
Cutting Edge Mat Cobalt M42
Coolant Thru No
Industry-Specific Applications
Mold Yes
Agricultural YES
Automotive Yes
Job Shop Yes
