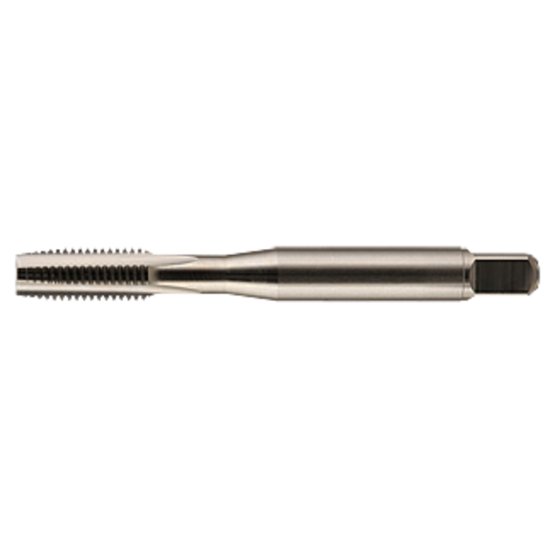

Picture of YMW 389614TIn 1/4-28.00TPI Cut Spiral Point Plug 4.0P-6.0P Cobalt M42 TiN

YMW 389614TIn 1/4-28.00TPI Cut Spiral Point Plug 4.0P-6.0P Cobalt M42 TiN

Part Number: YMW389614TIN
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
Call (262) 251-4020 for pricing
SKU: 1173803

Description

YMW 1/4"x28.00TPI Cut Spiral Point Plug 4.0P-6.0P Cobalt M42 TiN H3/GH3 NF/UNF/UNEF Steel Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools
Products specifications
Attribute name Attribute value
General Information
Shipping State California
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type NF/UNF/UNEF
Flute Direction RIGHT
Tap Style Cut Spiral Point
Tap Type Plug
Tap Chamfer 4.0P-6.0P
Dimensions & Sizing
Overall Length 2.5000 63.50MM
Shank/Pilot Dia 0.2550 6.48MM
Flutes/Inserts 3
Thread Pitch 28.00TPI
Thread Size 1/4"
Tap Drill Range 0.2244 5.70MM - 0.2220 5.64MM
Tap Square 0.1910
Performance & Capacity
Cut Rating <48HRC Steel, Aluminum, Gray Iron, Ductile Iron
Performance Rating High Performance
Tolerances & Accuracy
Thread Limit H3/GH3
Materials & Finish
Tool Material Steel
Cutting Edge Mat Cobalt M42
Coating TIN
Standards & Identification
Dimension Standard ANSI/ANSI
