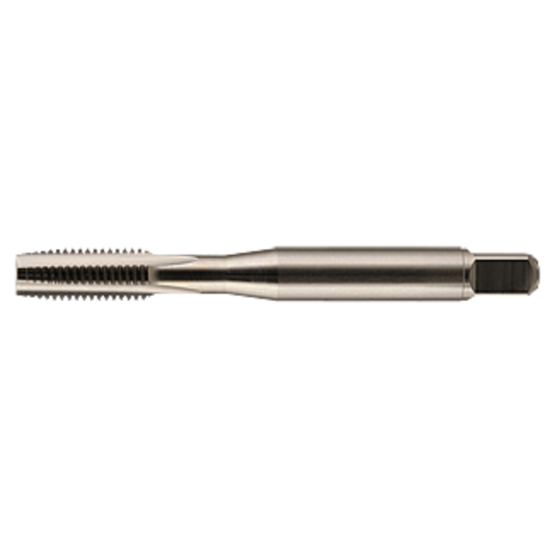

YMW 389613TICN 1/4-20.00TPI Cut Spiral Point Plug 4.0P-6.0P Cobalt M42 TiCN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YMW
SKU: YMW389613TICN
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

M42® is a premium cobalt high-speed steel with high hardness and superior hot hardness. The combination of composition and properties allows for machining high-strength and pre-hardened steels, high-hardness alloys, and the difficult-to-machine, nonferrous superalloys.

Grade and Coating Description

Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.

Products specifications
Attribute name Attribute value
General Product Information
Coating TiCN
Package Size 1
Application Cut Tapping, Tapping, Through Hole Tapping, Plug Tapping
Performance Rating High Performance
Made In USA No
Shipping State California
Dimensional Specifications
Thread Size 1/4"
Shank/Pilot Dia 0.2550 6.48MM
Tap Type Plug
Cut Rating <48HRC Steel, Aluminum, Ductile Iron, Gray Iron
Overall Len 2.5000 63.50MM
Tap Square 0.1910
Dimension Standard ANSI/ANSI
Flutes/Inserts 3
Drill Range 0.1976 5.02MM - 0.2106 5.35MM
Tap Chamfer 4.0P-6.0P
Machine Side Connection Type Tap Collet
Tap Style Cut Spiral Point
Thread Pitch 20.00TPI
Thread Type NC/UNC
Thread Limit H3/GH3
Flute Direction R - Right
Length Type Standard
Tool Material Steel
Cutting & Machining Properties
Cutting Edge Mat Cobalt M42
Coolant Thru No
Industry-Specific Applications
Agricultural YES
Mold Yes
Automotive Yes
Job Shop Yes
