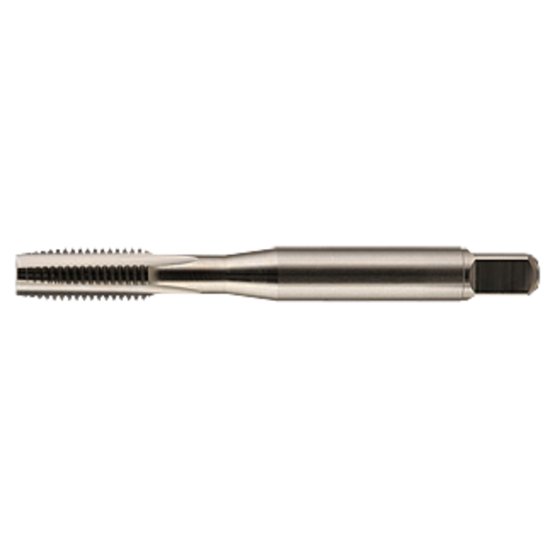

Picture of YMW 389607TICN No.10-32.00TPI Cut Spiral Point Plug 4.0P-6.0P Cobalt M42 TiCN

YMW 389607TICN No.10-32.00TPI Cut Spiral Point Plug 4.0P-6.0P Cobalt M42 TiCN

Part Number: YMW389607TICN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YMW
SKU: 1173796
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
YMW No.10x32.00TPI Cut Spiral Point Plug 4.0P-6.0P Cobalt M42 TiCN H3/GH3 NF/UNF/UNEF Steel Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.
Products specifications
Attribute name Attribute value
Shipping State California
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat Cobalt M42
Machine Side Connection Type Tap Collet
Cut Rating <48HRC Steel, Aluminum, Gray Iron, Ductile Iron
Coating TICN
Overall Length 2.3740 60.30MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.1940 4.93MM
Flutes/Inserts 3
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 32.00TPI
Thread Type NF/UNF/UNEF
Flute Direction RIGHT
Thread Size No.10
Thread Limit H3/GH3
Tap Style Cut Spiral Point
Tap Type Plug
Dimension Standard ANSI/ANSI
Tap Drill Range 0.1740 4.42MM - 0.1780 4.52MM
Tap Square 0.1520
Tap Chamfer 4.0P-6.0P
