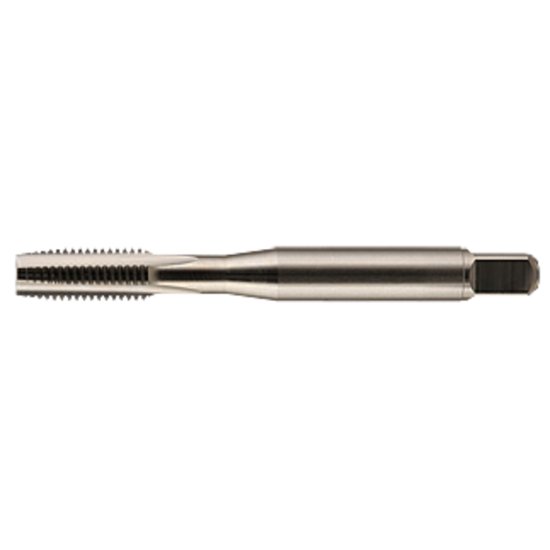

Picture of YMW 389606 No.10-24.00TPI Cut Spiral Point Plug 4.0P-6.0P Cobalt M42 Uncoated

YMW 389606 No.10-24.00TPI Cut Spiral Point Plug 4.0P-6.0P Cobalt M42 Uncoated

Part Number: YMW389606
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$19.21
SKU: 1173792

Description

YMW No.10x24.00TPI Cut Spiral Point Plug 4.0P-6.0P Cobalt M42 Uncoated H3/GH3 NC/UNC Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State California
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type NC/UNC
Flute Direction RIGHT
Tap Style Cut Spiral Point
Tap Type Plug
Tap Chamfer 4.0P-6.0P
Dimensions & Sizing
Overall Length 2.3740 60.30MM
Shank/Pilot Dia 0.1940 4.93MM
Flutes/Inserts 3
Thread Pitch 24.00TPI
Thread Size No.10
Tap Drill Range 0.1685 4.28MM - 0.1740 4.42MM
Tap Square 0.1520
Performance & Capacity
Cut Rating <48HRC Steel, Aluminum, Gray Iron, Ductile Iron
Performance Rating High Performance
Tolerances & Accuracy
Thread Limit H3/GH3
Materials & Finish
Tool Material Steel
Cutting Edge Mat Cobalt M42
Standards & Identification
Dimension Standard ANSI/ANSI
