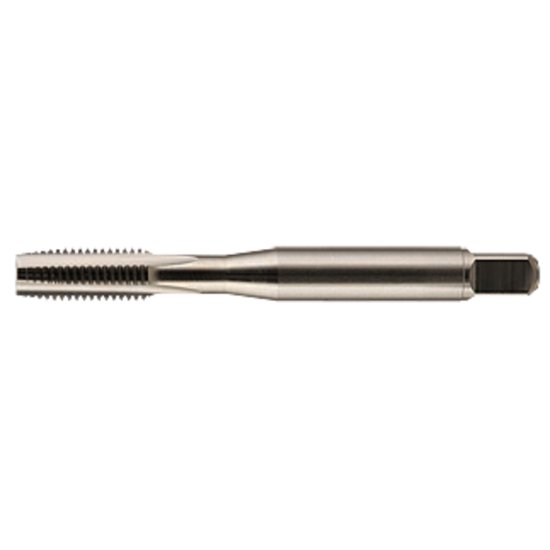

Picture of YMW 389604TICN No.8-32.00TPI Cut Spiral Point Plug 4.0P-6.0P Cobalt M42 TiCN

YMW 389604TICN No.8-32.00TPI Cut Spiral Point Plug 4.0P-6.0P Cobalt M42 TiCN

Part Number: YMW389604TICN
Looking for alternatives…
Find a drill for this tap No.8 × 32.00TPI
% of thread 75%
Target drill —
Drill products available across the % thread range 0 drills
50% 90%
Closest drill
—
View this drill →
Heads up: the drill list shows every drill within ±5% thread of your selection (so diameters vary across that band). Pick a drill closer to the target for higher % thread, or a larger one for easier tapping at lower %.

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1173790
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing

Description

YMW No.8x32.00TPI Cut Spiral Point Plug 4.0P-6.0P Cobalt M42 TiCN H3/GH3 NC/UNC Steel Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.
Products specifications
Attribute name Attribute value
General Information
Shipping State California
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type NC/UNC
Flute Direction RIGHT
Tap Style Cut Spiral Point
Tap Type Plug
Tap Chamfer 4.0P-6.0P
Dimensions & Sizing
Overall Length 2.1250 53.98MM
Shank/Pilot Dia 0.1680 4.27MM
Flutes/Inserts 3
Thread Pitch 32.00TPI
Thread Size No.8
Tap Drill Range 0.1480 3.76MM - 0.1520 3.86MM
Tap Square 0.1310
Performance & Capacity
Cut Rating <48HRC Steel, Aluminum, Gray Iron, Ductile Iron
Performance Rating High Performance
Tolerances & Accuracy
Thread Limit H3/GH3
Materials & Finish
Tool Material Steel
Cutting Edge Mat Cobalt M42
Coating TICN
Standards & Identification
Dimension Standard ANSI/ANSI
