  • YMW 389602 No.6-32.00TPI Cut Spiral Point Plug 4.0P-6.0P Cobalt M42 Uncoated

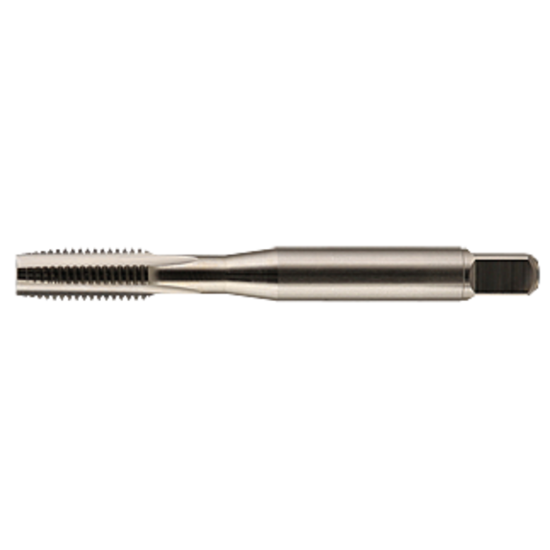

Picture of YMW 389602 No.6-32.00TPI Cut Spiral Point Plug 4.0P-6.0P Cobalt M42 Uncoated

YMW 389602 No.6-32.00TPI Cut Spiral Point Plug 4.0P-6.0P Cobalt M42 Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YMW
SKU: YMW389602
Delivery date: 3-5 days
$16.49

Cutting Edge Definition

M42® is a premium cobalt high-speed steel with high hardness and superior hot hardness. The combination of composition and properties allows for machining high-strength and pre-hardened steels, high-hardness alloys, and the difficult-to-machine, nonferrous superalloys.

Products specifications
Attribute name Attribute value
General Product Information
Application Plug Tapping, Through Hole Tapping, Cut Tapping, Tapping
Made In USA No
Shipping State California
Package Size 1
Performance Rating High Performance
Dimensional Specifications
Thread Size No.6
Flutes/Inserts 3
Thread Pitch 32.00TPI
Tap Type Plug
Thread Type NC/UNC
Thread Limit H3/GH3
Flute Direction R - Right
Length Type Standard
Shank/Pilot Dia 0.1410 3.58MM
Drill Range 0.1138 2.89MM - 0.1260 3.20MM
Cut Rating <48HRC Steel, Aluminum, Ductile Iron, Gray Iron
Tool Material Steel
Overall Len 2.0000 50.80MM
Tap Square 0.1100
Machine Side Connection Type Tap Collet
Tap Style Cut Spiral Point
Dimension Standard ANSI/ANSI
Tap Chamfer 4.0P-6.0P
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Cobalt M42
Industry-Specific Applications
Mold Yes
Agricultural YES
Automotive Yes
Job Shop Yes
