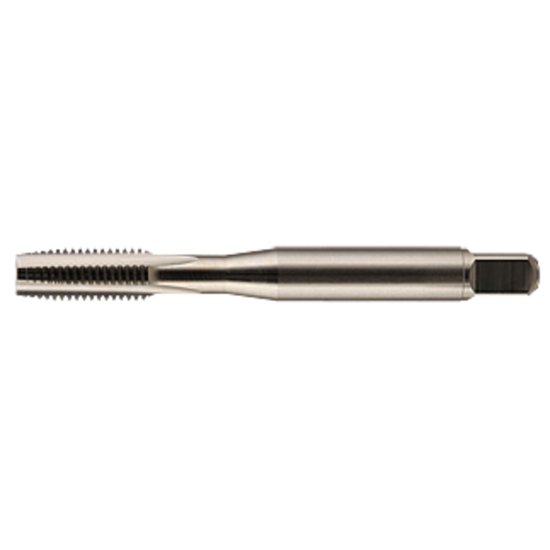

Picture of YMW 389599TIn No.4-40.00TPI Cut Spiral Point Plug 4.0P-6.0P Cobalt M42 TiN

YMW 389599TIn No.4-40.00TPI Cut Spiral Point Plug 4.0P-6.0P Cobalt M42 TiN

Part Number: YMW389599TIN
Looking for alternatives…
Find a drill for this tap No.4 × 40.00TPI
% of thread 75%
Target drill —
Drill products available across the % thread range 0 drills
50% 90%
Closest drill
—
View this drill →
Heads up: the drill list shows every drill within ±5% thread of your selection (so diameters vary across that band). Pick a drill closer to the target for higher % thread, or a larger one for easier tapping at lower %.

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1173782
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing

Description

YMW No.4x40.00TPI Cut Spiral Point Plug 4.0P-6.0P Cobalt M42 TiN H3/GH3 NC/UNC Steel Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools
Products specifications
Attribute name Attribute value
General Information
Shipping State California
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type NC/UNC
Flute Direction RIGHT
Tap Style Cut Spiral Point
Tap Type Plug
Tap Chamfer 4.0P-6.0P
Dimensions & Sizing
Overall Length 1.8750 47.63MM
Shank/Pilot Dia 0.1410 3.58MM
Flutes/Inserts 3
Thread Pitch 40.00TPI
Thread Size No.4
Tap Drill Range 0.0902 2.29MM - 0.0957 2.43MM
Tap Square 0.1080
Performance & Capacity
Cut Rating <48HRC Steel, Aluminum, Gray Iron, Ductile Iron
Performance Rating High Performance
Tolerances & Accuracy
Thread Limit H3/GH3
Materials & Finish
Tool Material Steel
Cutting Edge Mat Cobalt M42
Coating TIN
Standards & Identification
Dimension Standard ANSI/ANSI
