  • YMW 389599 No.4-40.00TPI Cut Spiral Point Plug 4.0P-6.0P Cobalt M42 Uncoated

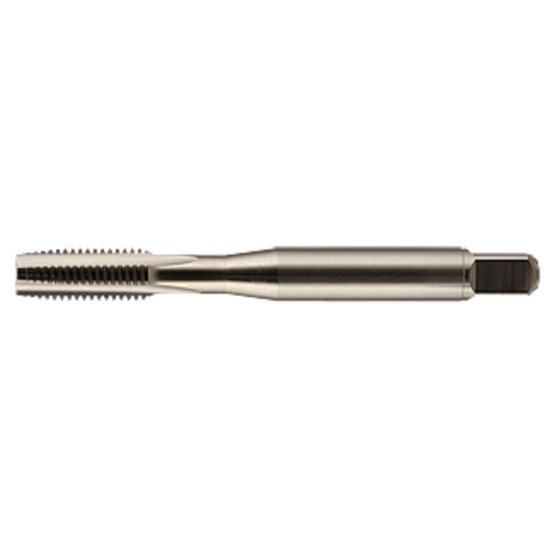

Picture of YMW 389599 No.4-40.00TPI Cut Spiral Point Plug 4.0P-6.0P Cobalt M42 Uncoated

YMW 389599 No.4-40.00TPI Cut Spiral Point Plug 4.0P-6.0P Cobalt M42 Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YMW
SKU: YMW389599
Delivery date: 3-5 days
$17.82

Cutting Edge Definition

M42® is a premium cobalt high-speed steel with high hardness and superior hot hardness. The combination of composition and properties allows for machining high-strength and pre-hardened steels, high-hardness alloys, and the difficult-to-machine, nonferrous superalloys.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Through Hole Tapping, Cut Tapping, Plug Tapping, Tapping
Performance Rating High Performance
Made In USA No
Shipping State California
Dimensional Specifications
Thread Type NC/UNC
Thread Limit H3/GH3
Drill Range 0.0902 2.29MM - 0.0957 2.43MM
Tap Square 0.1080
Thread Size No.4
Shank/Pilot Dia 0.1410 3.58MM
Tap Style Cut Spiral Point
Tool Material Steel
Cut Rating <48HRC Steel, Aluminum, Ductile Iron, Gray Iron
Machine Side Connection Type Tap Collet
Thread Pitch 40.00TPI
Tap Type Plug
Flutes/Inserts 3
Tap Chamfer 4.0P-6.0P
Dimension Standard ANSI/ANSI
Overall Len 1.8750 47.63MM
Flute Direction R - Right
Length Type Standard
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Cobalt M42
Industry-Specific Applications
Automotive Yes
Job Shop Yes
Mold Yes
Agricultural YES
