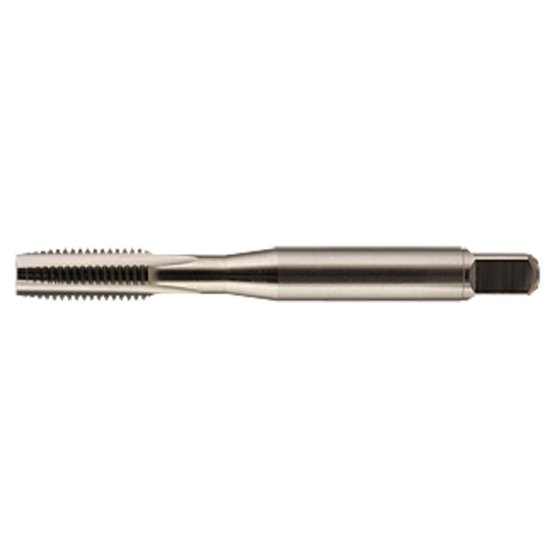

Picture of YMW 389599 No.4-40.00TPI Cut Spiral Point Plug 4.0P-6.0P Cobalt M42 Uncoated

YMW 389599 No.4-40.00TPI Cut Spiral Point Plug 4.0P-6.0P Cobalt M42 Uncoated

Part Number: YMW389599
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$20.49
SKU: 1173780

Description

YMW No.4x40.00TPI Cut Spiral Point Plug 4.0P-6.0P Cobalt M42 Uncoated H3/GH3 NC/UNC Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State California
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type NC/UNC
Flute Direction RIGHT
Tap Style Cut Spiral Point
Tap Type Plug
Tap Chamfer 4.0P-6.0P
Dimensions & Sizing
Overall Length 1.8750 47.63MM
Shank/Pilot Dia 0.1410 3.58MM
Flutes/Inserts 3
Thread Pitch 40.00TPI
Thread Size No.4
Tap Drill Range 0.0902 2.29MM - 0.0957 2.43MM
Tap Square 0.1080
Performance & Capacity
Cut Rating <48HRC Steel, Aluminum, Gray Iron, Ductile Iron
Performance Rating High Performance
Tolerances & Accuracy
Thread Limit H3/GH3
Materials & Finish
Tool Material Steel
Cutting Edge Mat Cobalt M42
Standards & Identification
Dimension Standard ANSI/ANSI
