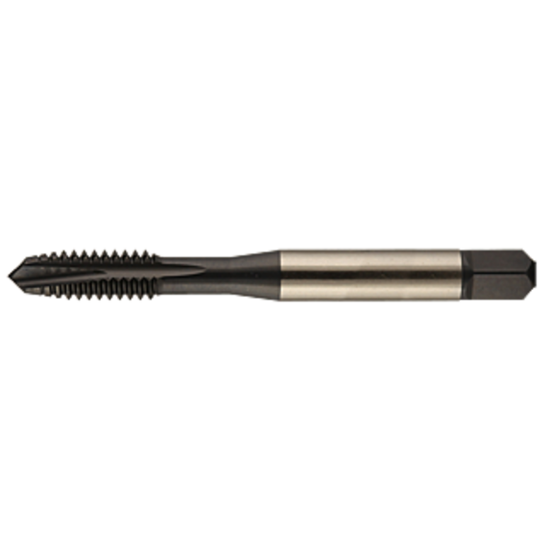

YMW 387272NX 5/16-18.00TPI STI Plug 3.0P-5.0P HSSE-P Nitride + Steam Oxide

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YMW
SKU: YMW387272NX
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

iquid nitriding is a surface enhancement process with one of the longest track records of success of any ‘case hardening’ technology. It is widely used to cost effectively enhance the wear and corrosion resistance of plain carbon steels, low alloy steels, and stainless steels for a diverse range of precision components and industries, including automotive; oil & gas; hydraulic and pneumatic machinery; firearms; metal forming and forging tools; construction, transportation and material handling equipment, and general purpose industrial machinery.

Products specifications
Attribute name Attribute value
General Product Information
Application Plug Tapping, STI Thread Insert Tapping, Through Hole Tapping, Tapping
Coating Nitride + Steam Oxide
Package Size 1
Shipping State California
Performance Rating High Performance
Made In USA No
Dimensional Specifications
Machine Side Connection Type Tap Collet
Drill Range 0.2547 6.47MM - 0.2689 6.83MM
Thread Pitch 18.00TPI
Thread Size 5/16"
Cut Rating <48HRC Steel, High Temp, Inconel
Tool Material Steel
Shank/Pilot Dia 0.3180 8.08MM
Tap Style STI
Dimension Standard ANSI/ANSI
Flutes/Inserts 3
Thread Type NC/UNC
Flute Direction R - Right
Overall Len 2.7200 69.09MM
Length Type Standard
Thread Limit H4/GH4
Tap Square 0.2380
Tap Type Plug
Tap Chamfer 3.0P-5.0P
Cutting & Machining Properties
Cutting Edge Mat HSSE-P
Coolant Thru No
Industry-Specific Applications
Medical Yes
Aerospace Yes
Mold Yes
Job Shop Yes
