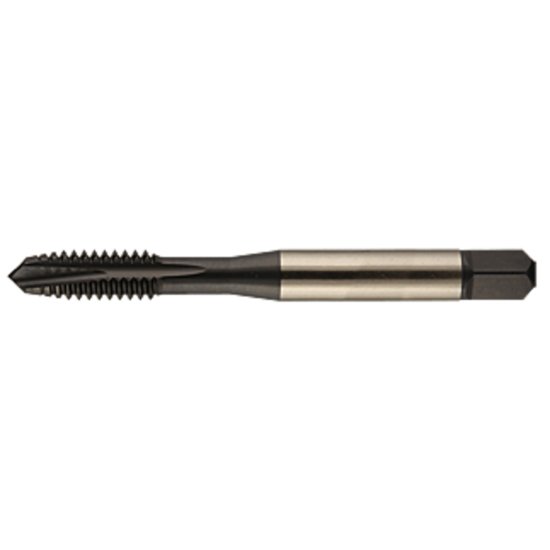

YMW 387270NX 3/8-16.00TPI STI Plug 3.0P-5.0P HSSE-P Nitride + Steam Oxide
Part Number: YMW387270NX
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
Call (262) 251-4020 for pricing
Qty:
Add to cart
SKU:
1173777
Add to My List
Email a friend
Share This:
Description
YMW 3/8"x16.00TPI STI Plug 3.0P-5.0P HSSE-P Nitride + Steam Oxide H4/GH4 NC/UNC Steel Liquid nitriding is a surface enhancement process with one of the longest track records of success of any ‘case hardening’ technology. It is widely used to cost effectively enhance the wear and corrosion resistance of plain carbon steels, low alloy steels, and stainless steels for a diverse range of precision components and industries, including automotive; oil & gas; hydraulic and pneumatic machinery; firearms; metal forming and forging tools; construction, transportation and material handling equipment, and general purpose industrial machinery.
Products specifications
Attribute name
Attribute value
General Information
Shipping State
California
Made In USA
NO
Cutter Type
Tapping
Coolant Thru
Non Coolant
Type Of Tool
Tap
Length Type
STANDARD
Thread Type
NC/UNC
Flute Direction
RIGHT
Tap Style
STI
Tap Type
Plug
Tap Chamfer
3.0P-5.0P
Dimensions & Sizing
Overall Length
2.9370 74.60MM
Shank/Pilot Dia
0.3810 9.68MM
Flutes/Inserts
3
Thread Pitch
16.00TPI
Thread Size
3/8"
Tap Drill Range
0.3429 8.71MM - 0.3516 8.93MM
Tap Square
0.2860
Performance & Capacity
Cut Rating
<48HRC Steel, High Temp, Inconel
Performance Rating
High Performance
Tolerances & Accuracy
Thread Limit
H4/GH4
Materials & Finish
Tool Material
Steel
Cutting Edge Mat
HSSE-P
Coating
Nitride + Steam Oxide
Standards & Identification
Dimension Standard
ANSI/ANSI
