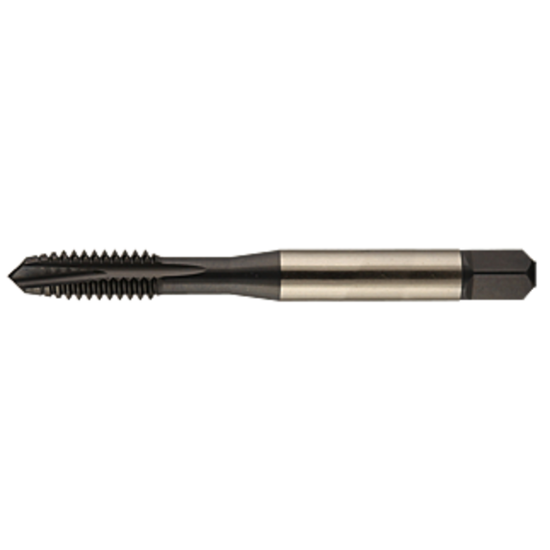

YMW 387228NX No.10-24.00TPI STI Plug 3.0P-5.0P HSSE-P Nitride + Steam Oxide

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YMW
SKU: YMW387228NX
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

iquid nitriding is a surface enhancement process with one of the longest track records of success of any ‘case hardening’ technology. It is widely used to cost effectively enhance the wear and corrosion resistance of plain carbon steels, low alloy steels, and stainless steels for a diverse range of precision components and industries, including automotive; oil & gas; hydraulic and pneumatic machinery; firearms; metal forming and forging tools; construction, transportation and material handling equipment, and general purpose industrial machinery.

Products specifications
Attribute name Attribute value
General Product Information
Coating Nitride + Steam Oxide
Made In USA No
Shipping State California
Application Plug Tapping, Tapping, STI Thread Insert Tapping, Through Hole Tapping
Package Size 1
Performance Rating High Performance
Dimensional Specifications
Overall Len 2.3740 60.30MM
Thread Type NC/UNC
Thread Limit H3/GH3
Flute Direction R - Right
Length Type Standard
Thread Size No.10
Shank/Pilot Dia 0.1940 4.93MM
Drill Range 0.1685 4.28MM - 0.1740 4.42MM
Tap Square 0.1520
Tap Type Plug
Tap Chamfer 3.0P-5.0P
Thread Pitch 24.00TPI
Dimension Standard ANSI/ANSI
Flutes/Inserts 3
Machine Side Connection Type Tap Collet
Cut Rating <48HRC Steel, High Temp, Inconel
Tool Material Steel
Tap Style STI
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE-P
Industry-Specific Applications
Aerospace Yes
Mold Yes
Medical Yes
Job Shop Yes
