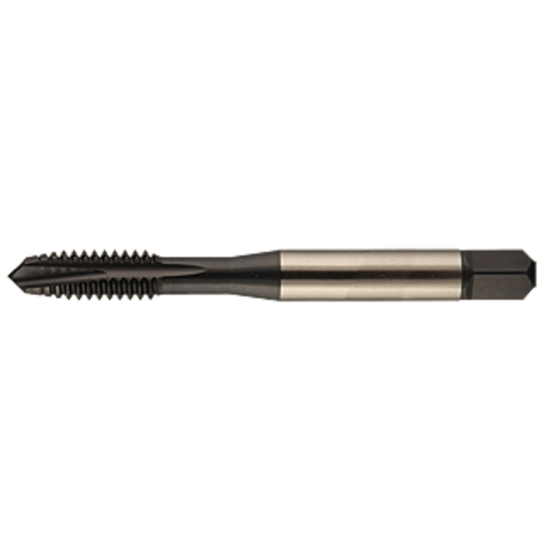

YMW 387209NX No.6-40.00TPI STI Plug 3.0P-5.0P HSSE-P Nitride + Steam Oxide

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YMW
SKU: YMW387209NX
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

iquid nitriding is a surface enhancement process with one of the longest track records of success of any ‘case hardening’ technology. It is widely used to cost effectively enhance the wear and corrosion resistance of plain carbon steels, low alloy steels, and stainless steels for a diverse range of precision components and industries, including automotive; oil & gas; hydraulic and pneumatic machinery; firearms; metal forming and forging tools; construction, transportation and material handling equipment, and general purpose industrial machinery.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application STI Thread Insert Tapping, Through Hole Tapping, Plug Tapping, Tapping
Coating Nitride + Steam Oxide
Made In USA No
Shipping State California
Performance Rating High Performance
Dimensional Specifications
Thread Limit H3/GH3
Drill Range 0.1118 2.84MM - 0.1181 3.00MM
Tap Square 0.1080
Thread Size No.6
Cut Rating <48HRC Steel, High Temp, Inconel
Tool Material Steel
Tap Style STI
Shank/Pilot Dia 0.1410 3.58MM
Flute Direction R - Right
Overall Len 2.0000 50.80MM
Length Type Standard
Flutes/Inserts 3
Thread Pitch 40.00TPI
Tap Type Plug
Tap Chamfer 3.0P-5.0P
Thread Type NF/UNF/UNEF
Dimension Standard ANSI/ANSI
Machine Side Connection Type Tap Collet
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE-P
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Mold Yes
Medical Yes
