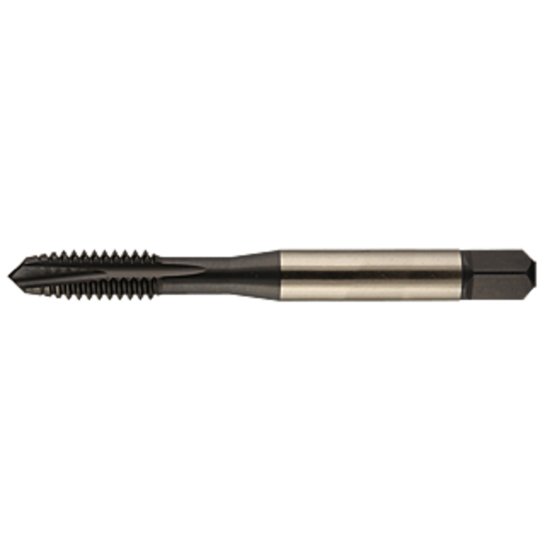

YMW 387088NX 1/2-13.00TPI STI Bottoming 1.0P-2.0P HSSE-P Nitride + Steam Oxide
YMW 387088NX 1/2-13.00TPI STI Bottoming 1.0P-2.0P HSSE-P Nitride + Steam Oxide
Part Number: YMW387088NX
Need Assistance or Service? Please call 262-251-4020
Manufacturer:
YMW
SKU:
1173750
Vendor:
Sussex Tool and Supply
$124.56
Qty:
Add to cart
Add to My List
Add to compare list
Email a friend
Share This:
YMW 1/2"x13.00TPI STI Bottoming 1.0P-2.0P HSSE-P Nitride + Steam Oxide H5/GH5 NC/UNC Steel Liquid nitriding is a surface enhancement process with one of the longest track records of success of any ‘case hardening’ technology. It is widely used to cost effectively enhance the wear and corrosion resistance of plain carbon steels, low alloy steels, and stainless steels for a diverse range of precision components and industries, including automotive; oil & gas; hydraulic and pneumatic machinery; firearms; metal forming and forging tools; construction, transportation and material handling equipment, and general purpose industrial machinery.
Products specifications
Attribute name
Attribute value
Shipping State
California
Made In USA
NO
Cutter Type
Tapping
Tool Material
Steel
Cutting Edge Mat
HSSE-P
Machine Side Connection Type
Tap Collet
Cut Rating
<48HRC Steel, High Temp, Inconel
Coating
Nitride + Steam Oxide
Overall Length
3.3740 85.70MM
Coolant Thru
Non Coolant
Shank/Pilot Dia
0.3670 9.32MM
Flutes/Inserts
3
Type Of Tool
Tap
Length Type
STANDARD
Performance Rating
High Performance
Thread Pitch
13.00TPI
Thread Type
NC/UNC
Flute Direction
RIGHT
Thread Size
1/2"
Thread Limit
H5/GH5
Tap Style
STI
Tap Type
Bottoming
Dimension Standard
ANSI/ANSI
Tap Drill Range
0.4201 10.67MM - 0.4398 11.17MM
Tap Square
0.2750
Tap Chamfer
1.0P-2.0P
