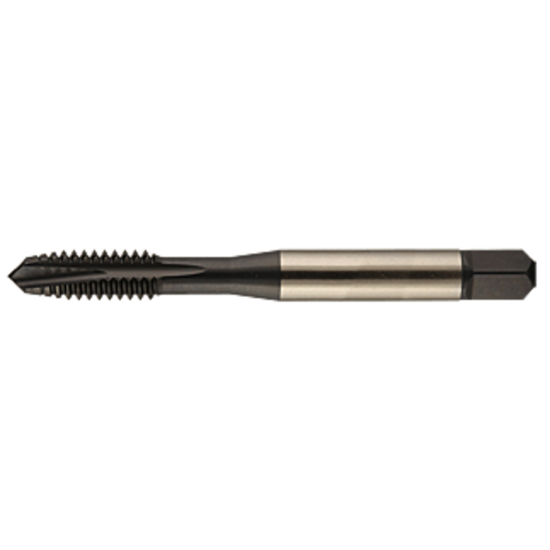

YMW 387061NX 5/16-24.00TPI STI Bottoming 1.0P-2.0P HSSE-P Nitride + Steam Oxide

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YMW
SKU: YMW387061NX
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

iquid nitriding is a surface enhancement process with one of the longest track records of success of any ‘case hardening’ technology. It is widely used to cost effectively enhance the wear and corrosion resistance of plain carbon steels, low alloy steels, and stainless steels for a diverse range of precision components and industries, including automotive; oil & gas; hydraulic and pneumatic machinery; firearms; metal forming and forging tools; construction, transportation and material handling equipment, and general purpose industrial machinery.

Products specifications
Attribute name Attribute value
General Product Information
Application Blind Hole Tapping, STI Thread Insert Tapping, Bottom Tapping, Tapping
Package Size 1
Coating Nitride + Steam Oxide
Performance Rating High Performance
Made In USA No
Shipping State California
Dimensional Specifications
Tap Square 0.2380
Thread Pitch 24.00TPI
Flutes/Inserts 3
Drill Range 0.2689 6.83MM - 0.2799 7.11MM
Thread Limit H3/GH3
Tap Chamfer 1.0P-2.0P
Cut Rating <48HRC Steel, High Temp, Inconel
Tool Material Steel
Shank/Pilot Dia 0.3180 8.08MM
Tap Style STI
Thread Type NF/UNF/UNEF
Dimension Standard ANSI/ANSI
Thread Size 5/16"
Flute Direction R - Right
Overall Len 2.7200 69.09MM
Length Type Standard
Tap Type Bottoming
Machine Side Connection Type Tap Collet
Cutting & Machining Properties
Cutting Edge Mat HSSE-P
Coolant Thru No
Industry-Specific Applications
Medical Yes
Energy Yes
Aerospace Yes
Job Shop Yes
