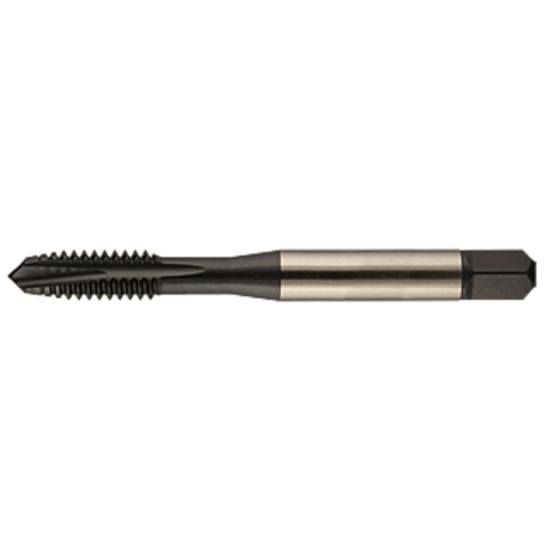

YMW 387059NX 1/4-28.00TPI STI Bottoming 1.0P-2.0P HSSE-P Nitride + Steam Oxide

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YMW
SKU: YMW387059NX
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

iquid nitriding is a surface enhancement process with one of the longest track records of success of any ‘case hardening’ technology. It is widely used to cost effectively enhance the wear and corrosion resistance of plain carbon steels, low alloy steels, and stainless steels for a diverse range of precision components and industries, including automotive; oil & gas; hydraulic and pneumatic machinery; firearms; metal forming and forging tools; construction, transportation and material handling equipment, and general purpose industrial machinery.

Products specifications
Attribute name Attribute value
General Product Information
Application STI Thread Insert Tapping, Bottom Tapping, Tapping, Blind Hole Tapping
Package Size 1
Performance Rating High Performance
Made In USA No
Shipping State California
Coating Nitride + Steam Oxide
Dimensional Specifications
Cut Rating <48HRC Steel, High Temp, Inconel
Tool Material Steel
Tap Type Bottoming
Tap Style STI
Tap Square 0.1910
Tap Chamfer 1.0P-2.0P
Thread Type NF/UNF/UNEF
Dimension Standard ANSI/ANSI
Flute Direction R - Right
Length Type Standard
Machine Side Connection Type Tap Collet
Overall Len 2.5000 63.50MM
Thread Size 1/4"
Thread Limit H4/GH4
Shank/Pilot Dia 0.2550 6.48MM
Thread Pitch 28.00TPI
Flutes/Inserts 3
Drill Range 0.2244 5.70MM - 0.2220 5.64MM
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE-P
Industry-Specific Applications
Job Shop Yes
Energy Yes
Medical Yes
Aerospace Yes
