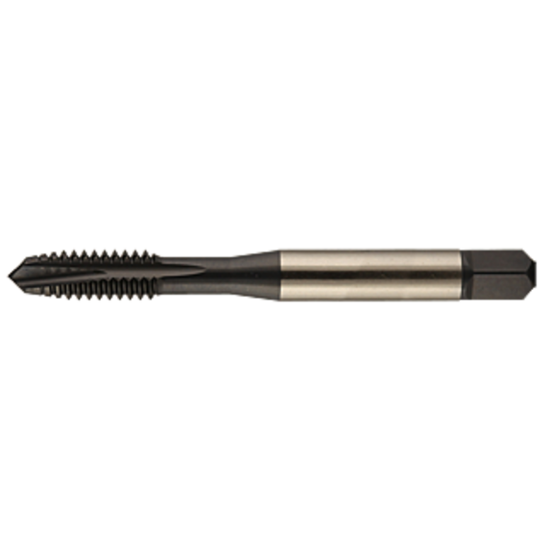

YMW 387029NX No.10-32.00TPI STI Bottoming 1.0P-2.0P HSSE-P Nitride + Steam Oxide

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YMW
SKU: YMW387029NX
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

iquid nitriding is a surface enhancement process with one of the longest track records of success of any ‘case hardening’ technology. It is widely used to cost effectively enhance the wear and corrosion resistance of plain carbon steels, low alloy steels, and stainless steels for a diverse range of precision components and industries, including automotive; oil & gas; hydraulic and pneumatic machinery; firearms; metal forming and forging tools; construction, transportation and material handling equipment, and general purpose industrial machinery.

Products specifications
Attribute name Attribute value
General Product Information
Application STI Thread Insert Tapping, Blind Hole Tapping, Tapping, Bottom Tapping
Coating Nitride + Steam Oxide
Performance Rating High Performance
Made In USA No
Shipping State California
Package Size 1
Dimensional Specifications
Thread Limit H3/GH3
Tap Chamfer 1.0P-2.0P
Machine Side Connection Type Tap Collet
Tool Material Steel
Overall Len 2.3740 60.30MM
Tap Square 0.1520
Flutes/Inserts 3
Flute Direction R - Right
Cut Rating <48HRC Steel, High Temp, Inconel
Length Type Standard
Tap Type Bottoming
Tap Style STI
Thread Pitch 32.00TPI
Thread Type NF/UNF/UNEF
Dimension Standard ANSI/ANSI
Drill Range 0.1740 4.42MM - 0.1780 4.52MM
Thread Size No.10
Shank/Pilot Dia 0.1940 4.93MM
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE-P
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Medical Yes
Energy Yes
