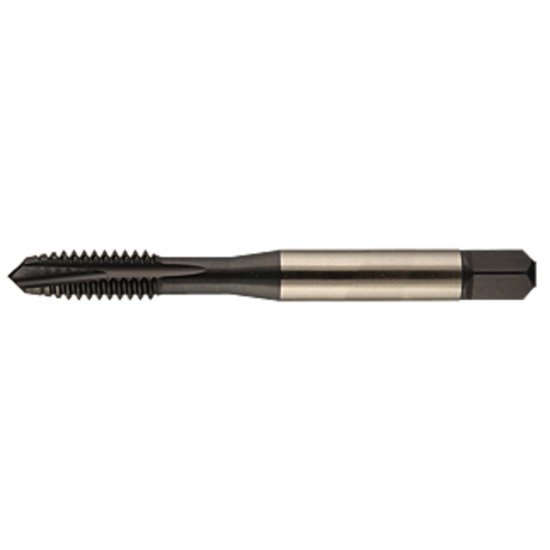

Picture of YMW 387004NX No.4-40.00TPI STI Bottoming 1.0P-2.0P HSSE-P Nitride + Steam Oxide

YMW 387004NX No.4-40.00TPI STI Bottoming 1.0P-2.0P HSSE-P Nitride + Steam Oxide

Part Number: YMW387004NX
Tool Cross-Reference
Looking for alternatives…
STI tap drill
No.4 × 40.00TPI — 4-40 STI
Drill for: All materials
0.1200" #31
107 drills available
See all drills at 0.1200" →

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1173733
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing

Description

YMW No.4x40.00TPI STI Bottoming 1.0P-2.0P HSSE-P Nitride + Steam Oxide H3/GH3 NC/UNC Steel Liquid nitriding is a surface enhancement process with one of the longest track records of success of any ‘case hardening’ technology. It is widely used to cost effectively enhance the wear and corrosion resistance of plain carbon steels, low alloy steels, and stainless steels for a diverse range of precision components and industries, including automotive; oil & gas; hydraulic and pneumatic machinery; firearms; metal forming and forging tools; construction, transportation and material handling equipment, and general purpose industrial machinery.
Products specifications
Attribute name Attribute value
General Information
Shipping State California
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type NC/UNC
Flute Direction RIGHT
Tap Style STI
Tap Type Bottoming
Tap Chamfer 1.0P-2.0P
Dimensions & Sizing
Overall Length 1.8750 47.63MM
Shank/Pilot Dia 0.1410 3.58MM
Flutes/Inserts 3
Thread Pitch 40.00TPI
Thread Size No.4
Tap Drill Range 0.0902 2.29MM - 0.0957 2.43MM
Tap Square 0.1080
Performance & Capacity
Cut Rating <48HRC Steel, High Temp, Inconel
Performance Rating High Performance
Tolerances & Accuracy
Thread Limit H3/GH3
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSSE-P
Coating Nitride + Steam Oxide
Standards & Identification
Dimension Standard ANSI/ANSI
