  • YMW 384913TIN 1/4-20.00TPI Cut Spiral Flute Mod Bottom 2.5P-3.5P HSSE-V TiN

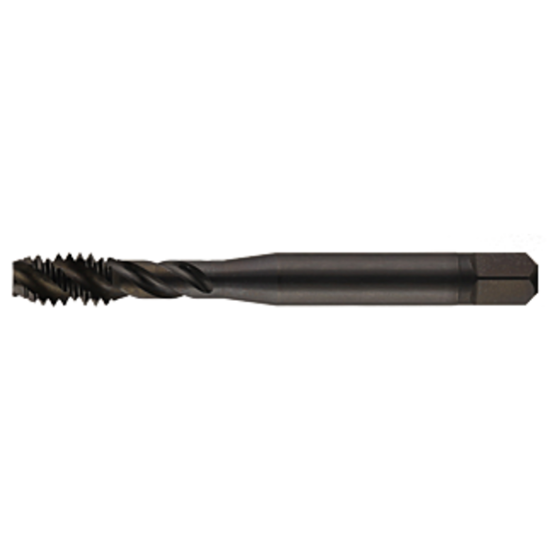

Picture of YMW 384913TIN 1/4-20.00TPI Cut Spiral Flute Mod Bottom 2.5P-3.5P HSSE-V TiN

YMW 384913TIN 1/4-20.00TPI Cut Spiral Flute Mod Bottom 2.5P-3.5P HSSE-V TiN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YMW
SKU: YMW384913TIN
Delivery date: 3-5 days
$21.85

Cutting Edge Definition

Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Coating TiN
Application Mod Bottom Tapping, Cut Tapping, Tapping
Performance Rating High Performance
Shipping State California
Package Size 1
Dimensional Specifications
Thread Pitch 20.00TPI
Thread Type NC/UNC
Thread Limit H3/GH3
Flute Direction R - Right
Cut Rating <40HRC Steel, Stainless Steel
Length Type Standard
Machine Side Connection Type Tap Collet
Tap Type Mod Bottom
Tap Chamfer 2.5P-3.5P
Shank/Pilot Dia 0.2550 6.48MM
Dimension Standard ANSI/ANSI
Flutes/Inserts 3
Drill Range 0.1976 5.02MM - 0.2106 5.35MM
Tool Material Steel
Thread Size 1/4"
Overall Len 2.5000 63.50MM
Tap Square 0.1910
Tap Style Cut Spiral Flute
Cutting & Machining Properties
Cutting Edge Mat HSSE-V
Coolant Thru No
Industry-Specific Applications
Medical Yes
Aerospace Yes
Mold Yes
Job Shop Yes
Agricultural YES
