  • YMW 384054TIN 9/16-18.00TPI Cut Spiral Flute Bottoming 1.0P-2.0P HSSE-V TiN

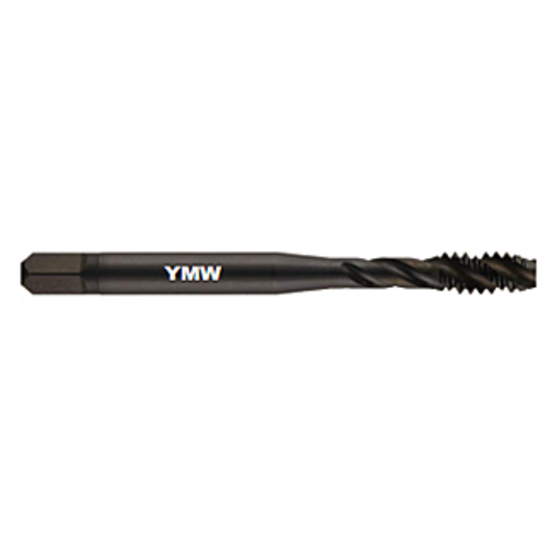

Picture of YMW 384054TIN 9/16-18.00TPI Cut Spiral Flute Bottoming 1.0P-2.0P HSSE-V TiN

YMW 384054TIN 9/16-18.00TPI Cut Spiral Flute Bottoming 1.0P-2.0P HSSE-V TiN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YMW
SKU: YMW384054TIN
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Shipping State California
Application Bottom Tapping, Tapping, Cut Tapping
Package Size 1
Performance Rating High Performance
Coating TiN
Dimensional Specifications
Thread Pitch 18.00TPI
Cut Rating <40HRC Steel, Aluminum, Brass, Copper, Ductile Iron, Gray Iron, Stainless Steel
Tap Style Cut Spiral Flute
Flute Direction R - Right
Length Type Standard
Tap Type Bottoming
Dimension Standard ANSI/ANSI
Thread Size 9/16"
Tool Material Steel
Shank/Pilot Dia 0.4290 10.90MM
Thread Type NC/UNC
Thread Limit H3/GH3
Tap Chamfer 1.0P-2.0P
Flutes/Inserts 3
Drill Range 0.5047 12.82MM - 0.5189 13.18MM
Machine Side Connection Type Tap Collet
Overall Len 3.5940 91.29MM
Tap Square 0.3220
Cutting & Machining Properties
Cutting Edge Mat HSSE-V
Coolant Thru No
Industry-Specific Applications
Agricultural YES
Medical Yes
Automotive Yes
Aerospace Yes
Job Shop Yes
Mold Yes
