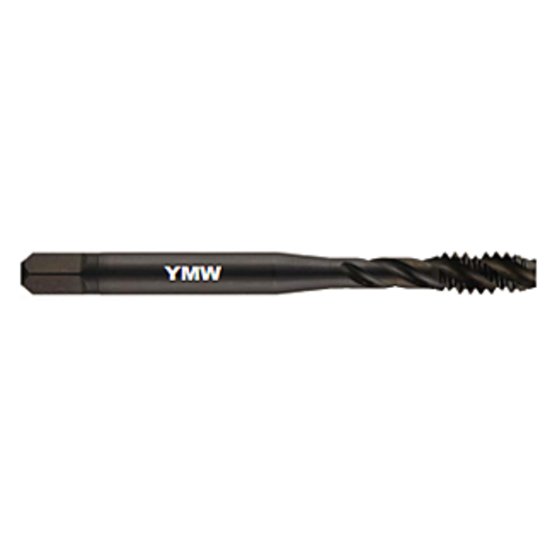

Picture of YMW 384054 9/16-18.00TPI Cut Spiral Flute Bottoming 1.0P-2.0P HSSE-V Steam Oxide

YMW 384054 9/16-18.00TPI Cut Spiral Flute Bottoming 1.0P-2.0P HSSE-V Steam Oxide

Part Number: YMW384054

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YMW
SKU: 1173724
Vendor: Sussex Tool and Supply
$56.24
YMW 9/16"x18.00TPI Cut Spiral Flute Bottoming 1.0P-2.0P HSSE-V Steam Oxide H3/GH3 NF/UNF/UNEF Steel The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.
Products specifications
Attribute name Attribute value
Shipping State California
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE-V
Machine Side Connection Type Tap Collet
Cut Rating Aluminum, Brass, Stainless Steel, <40HRC Steel, Copper, Ductile Iron, Gray Iron
Coating Steam Oxide
Overall Length 3.5940 91.29MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.4290 10.90MM
Flutes/Inserts 3
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 18.00TPI
Thread Type NF/UNF/UNEF
Flute Direction RIGHT
Thread Size 9/16"
Thread Limit H3/GH3
Tap Style Cut Spiral Flute
Tap Type Bottoming
Dimension Standard ANSI/ANSI
Tap Drill Range 0.5047 12.82MM - 0.5189 13.18MM
Tap Square 0.3220
Tap Chamfer 1.0P-2.0P
