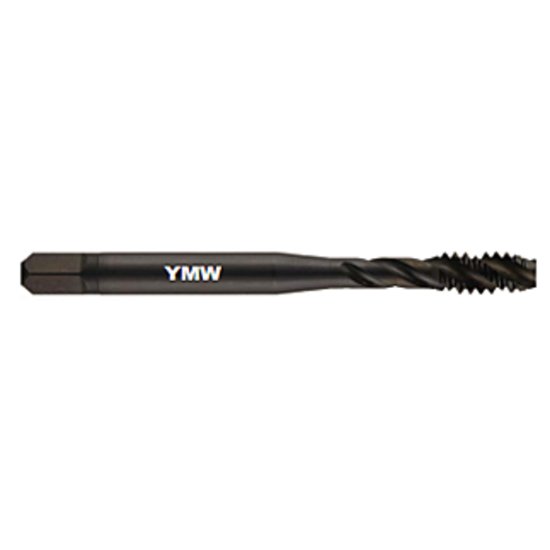

Picture of YMW 384017TIn 3/8-16.00TPI Cut Spiral Flute Bottoming 1.0P-2.0P HSSE-V TiN

YMW 384017TIn 3/8-16.00TPI Cut Spiral Flute Bottoming 1.0P-2.0P HSSE-V TiN

Part Number: YMW384017TIN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YMW
SKU: 1173695
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
YMW 3/8"x16.00TPI Cut Spiral Flute Bottoming 1.0P-2.0P HSSE-V TiN H3/GH3 NC/UNC Steel Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools
Products specifications
Attribute name Attribute value
Shipping State California
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE-V
Machine Side Connection Type Tap Collet
Cut Rating Aluminum, Brass, Stainless Steel, <40HRC Steel, Copper, Ductile Iron, Gray Iron
Coating TIN
Overall Length 2.9370 74.60MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.3810 9.68MM
Flutes/Inserts 3
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 16.00TPI
Thread Type NC/UNC
Flute Direction RIGHT
Thread Size 3/8"
Thread Limit H3/GH3
Tap Style Cut Spiral Flute
Tap Type Bottoming
Dimension Standard ANSI/ANSI
Tap Drill Range 0.3315 8.42MM - 0.3421 8.69MM
Tap Square 0.2860
Tap Chamfer 1.0P-2.0P
