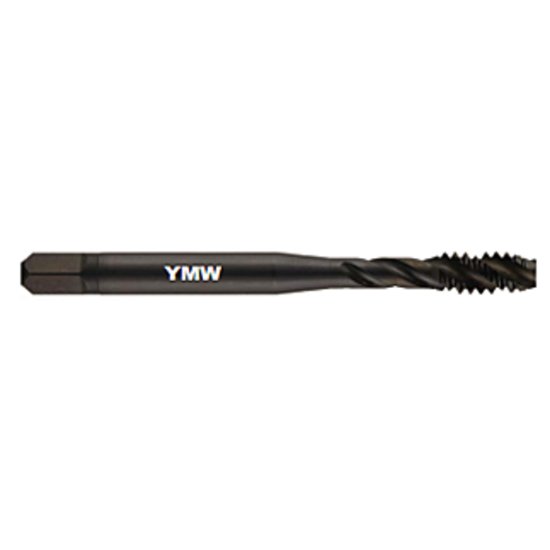

Picture of YMW 384015 5/16-18.00TPI Cut Spiral Flute Bottoming 1.0P-2.0P HSSE-V Steam Oxide

YMW 384015 5/16-18.00TPI Cut Spiral Flute Bottoming 1.0P-2.0P HSSE-V Steam Oxide

Part Number: YMW384015

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YMW
SKU: 1173691
Vendor: Sussex Tool and Supply
$22.48
YMW 5/16"x18.00TPI Cut Spiral Flute Bottoming 1.0P-2.0P HSSE-V Steam Oxide H3/GH3 NC/UNC Steel The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.
Products specifications
Attribute name Attribute value
Shipping State California
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE-V
Machine Side Connection Type Tap Collet
Cut Rating Aluminum, Brass, Stainless Steel, <40HRC Steel, Copper, Ductile Iron, Gray Iron
Coating Steam Oxide
Overall Length 2.7200 69.09MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.3180 8.08MM
Flutes/Inserts 3
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 18.00TPI
Thread Type NC/UNC
Flute Direction RIGHT
Thread Size 5/16"
Thread Limit H3/GH3
Tap Style Cut Spiral Flute
Tap Type Bottoming
Dimension Standard ANSI/ANSI
Tap Drill Range 0.2547 6.47MM - 0.2689 6.83MM
Tap Square 0.2380
Tap Chamfer 1.0P-2.0P
