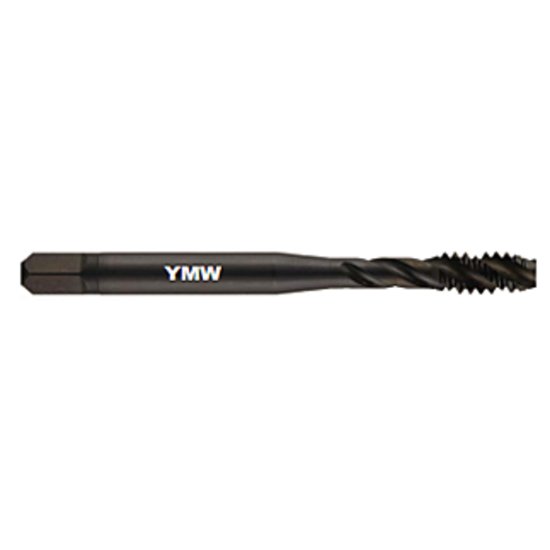

Picture of YMW 384009 No.10-24.00TPI Cut Spiral Flute Bottoming 1.0P-2.0P HSSE-V Steam Oxide

YMW 384009 No.10-24.00TPI Cut Spiral Flute Bottoming 1.0P-2.0P HSSE-V Steam Oxide

Part Number: YMW384009

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YMW
SKU: 1173687
Vendor: Sussex Tool and Supply
$15.48
YMW No.10x24.00TPI Cut Spiral Flute Bottoming 1.0P-2.0P HSSE-V Steam Oxide H3/GH3 NC/UNC Steel The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.
Products specifications
Attribute name Attribute value
Shipping State California
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE-V
Machine Side Connection Type Tap Collet
Cut Rating Aluminum, Brass, Stainless Steel, <40HRC Steel, Copper, Ductile Iron, Gray Iron
Coating Steam Oxide
Overall Length 2.3740 60.30MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.1940 4.93MM
Flutes/Inserts 3
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 24.00TPI
Thread Type NC/UNC
Flute Direction RIGHT
Thread Size No.10
Thread Limit H3/GH3
Tap Style Cut Spiral Flute
Tap Type Bottoming
Dimension Standard ANSI/ANSI
Tap Drill Range 0.1685 4.28MM - 0.1740 4.42MM
Tap Square 0.1520
Tap Chamfer 1.0P-2.0P
