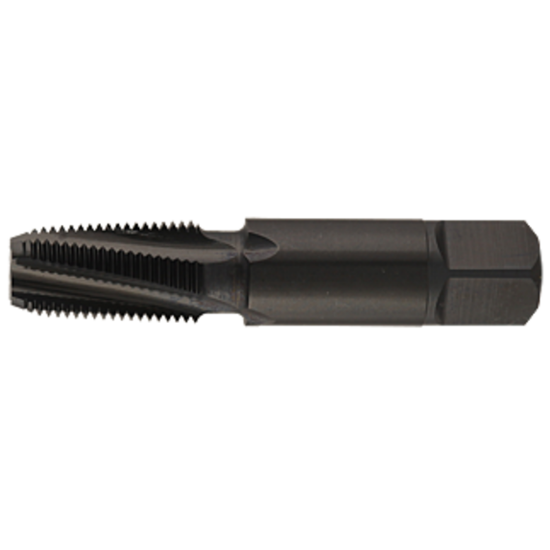

YMW 383667OX 1-11.00TPI Pipe Spiral Flute Pipe HSS Steam Oxide

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YMW
SKU: YMW383667OX
Delivery date: 3-5 days
$315.37

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.

Products specifications
Attribute name Attribute value
General Product Information
Application Pipe Tapping, Tapping, Spiral Flute Pipe
Made In USA No
Coating Steam Oxide
Performance Rating High Performance
Package Size 1
Shipping State California
Dimensional Specifications
Thread Size 1"
Flute Direction R - Right
Flutes/Inserts 4
Length Type Standard
Thread Pitch 11.00TPI
Cut Rating <40HRC Steel, Aluminum, Brass, Copper, Ductile Iron, Gray Iron, Stainless Steel
Machine Side Connection Type Tap Collet
Overall Len 3.7520 95.30MM
Tap Type Pipe
Dimension Standard ANSI/ANSI
Thread Limit PIPE
Shank/Pilot Dia 1.1250 28.58MM - 1-1/8
Drill Range 1.1406 28.97MM
Tap Style Pipe Spiral Flute
Tap Square 0.8390
Thread Type NPT/NPTF/ANPT
Tool Material Steel
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS
Industry-Specific Applications
Job Shop Yes
