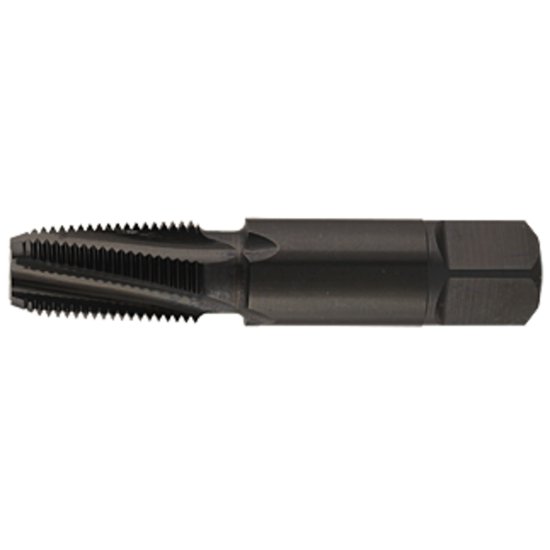

Picture of YMW 383663TIn 1/4-18.00TPI Pipe Spiral Flute Pipe HSS TiN

YMW 383663TIn 1/4-18.00TPI Pipe Spiral Flute Pipe HSS TiN

Part Number: YMW383663TIN
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$114.39
SKU: 1173675

Description

YMW 1/4"x18.00TPI Pipe Spiral Flute Pipe HSS TiN PIPE NPT/NPTF/ANPT Steel Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools
Products specifications
Attribute name Attribute value
General Information
Shipping State California
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type NPT/NPTF/ANPT
Flute Direction RIGHT
Tap Style Pipe Spiral Flute
Tap Type Pipe
Dimensions & Sizing
Overall Length 2.4370 61.90MM
Shank/Pilot Dia 0.5620 14.27MM
Flutes/Inserts 4
Thread Pitch 18.00TPI
Thread Size 1/4"
Tap Drill Range 0.4378 11.12MM
Tap Square 0.4210
Performance & Capacity
Cut Rating Aluminum, Brass, Stainless Steel, <40HRC Steel, Copper, Ductile Iron, Gray Iron
Performance Rating High Performance
Tolerances & Accuracy
Thread Limit PIPE
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSS
Coating TIN
Standards & Identification
Dimension Standard ANSI/ANSI
