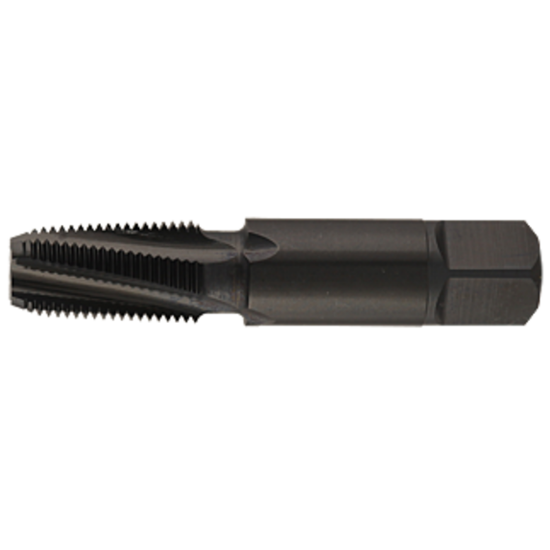

YMW 383663OX 1/4-18.00TPI Pipe Spiral Flute Pipe HSS Steam Oxide

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YMW
SKU: YMW383663OX
Delivery date: 3-5 days
$70.36

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.

Products specifications
Attribute name Attribute value
General Product Information
Application Tapping, Pipe Tapping, Spiral Flute Pipe
Performance Rating High Performance
Package Size 1
Coating Steam Oxide
Made In USA No
Shipping State California
Dimensional Specifications
Tap Type Pipe
Dimension Standard ANSI/ANSI
Tap Style Pipe Spiral Flute
Thread Size 1/4"
Shank/Pilot Dia 0.5620 14.27MM
Drill Range 0.4378 11.12MM
Tap Square 0.4210
Overall Len 2.4370 61.90MM
Thread Type NPT/NPTF/ANPT
Flute Direction R - Right
Flutes/Inserts 4
Length Type Standard
Tool Material Steel
Thread Pitch 18.00TPI
Thread Limit PIPE
Cut Rating <40HRC Steel, Aluminum, Brass, Copper, Ductile Iron, Gray Iron, Stainless Steel
Machine Side Connection Type Tap Collet
Cutting & Machining Properties
Cutting Edge Mat HSS
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
