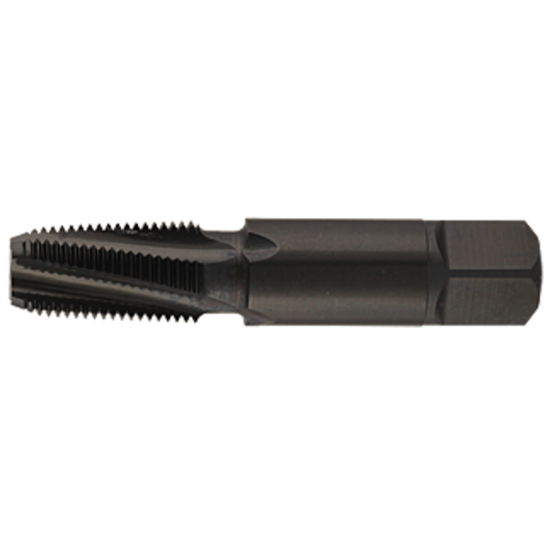

YMW 383646TIN 3/4-14.00TPI Pipe Spiral Flute Pipe HSS TiN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YMW
SKU: YMW383646TIN
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Application Tapping, Spiral Flute Pipe, Pipe Tapping
Performance Rating High Performance
Made In USA No
Shipping State California
Coating TiN
Package Size 1
Dimensional Specifications
Thread Size 3/4"
Thread Pitch 14.00TPI
Thread Type NPT/NPTF/ANPT
Flute Direction R - Right
Length Type Standard
Cut Rating <40HRC Steel, Aluminum, Brass, Copper, Ductile Iron, Gray Iron, Stainless Steel
Machine Side Connection Type Tap Collet
Drill Range 0.9059 23.01MM
Tap Type Pipe
Flutes/Inserts 4
Tool Material Steel
Thread Limit PIPE
Tap Square 0.6790
Tap Style Pipe Spiral Flute
Dimension Standard ANSI/ANSI
Shank/Pilot Dia 0.9063 23.02MM - 29/32
Overall Len 3.2520 82.60MM
Cutting & Machining Properties
Cutting Edge Mat HSS
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
