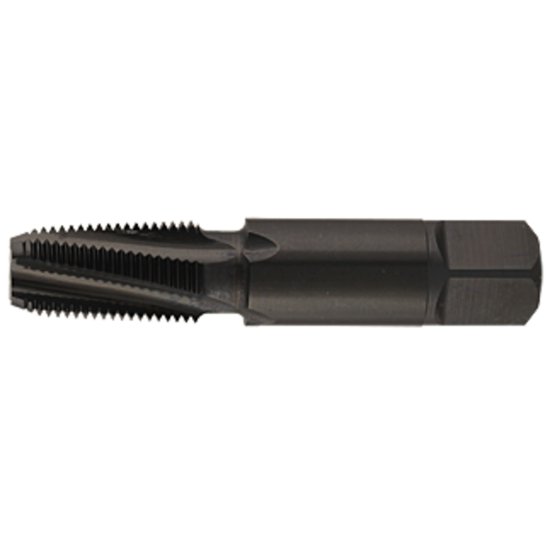

Picture of YMW 383645TIn 1/2-14.00TPI Pipe Spiral Flute Pipe HSS TiN

YMW 383645TIn 1/2-14.00TPI Pipe Spiral Flute Pipe HSS TiN

Part Number: YMW383645TIN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YMW
SKU: 1173663
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
YMW 1/2"x14.00TPI Pipe Spiral Flute Pipe HSS TiN PIPE NPT/NPTF/ANPT Steel Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools
Products specifications
Attribute name Attribute value
Shipping State California
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSS
Machine Side Connection Type Tap Collet
Cut Rating Aluminum, Brass, Stainless Steel, <40HRC Steel, Copper, Ductile Iron, Gray Iron
Coating TIN
Overall Length 3.1260 79.40MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.6870 17.45MM
Flutes/Inserts 4
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 14.00TPI
Thread Type NPT/NPTF/ANPT
Flute Direction RIGHT
Thread Size 1/2"
Thread Limit PIPE
Tap Style Pipe Spiral Flute
Tap Type Pipe
Dimension Standard ANSI/ANSI
Tap Drill Range 17.8500 453.39MM
Tap Square 0.5150
