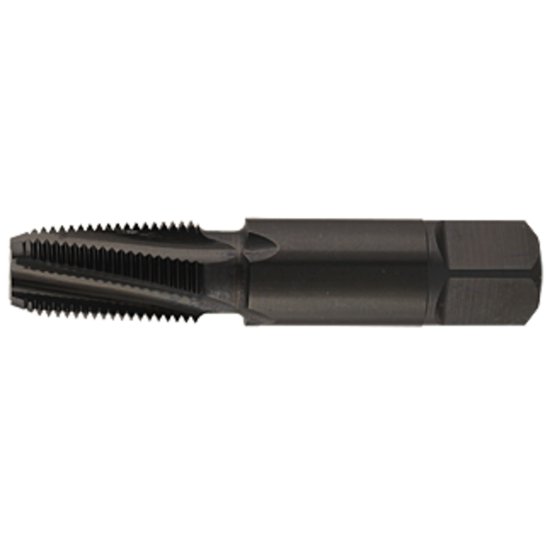

Picture of YMW 383644TIn 3/8-18.00TPI Pipe Spiral Flute Pipe HSS TiN

YMW 383644TIn 3/8-18.00TPI Pipe Spiral Flute Pipe HSS TiN

Part Number: YMW383644TIN
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
Call (262) 251-4020 for pricing
SKU: 1173659

Description

YMW 3/8"x18.00TPI Pipe Spiral Flute Pipe HSS TiN PIPE NPT/NPTF/ANPT Steel Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools
Products specifications
Attribute name Attribute value
General Information
Shipping State California
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type NPT/NPTF/ANPT
Flute Direction RIGHT
Tap Style Pipe Spiral Flute
Tap Type Pipe
Dimensions & Sizing
Overall Length 2.5620 65.07MM
Shank/Pilot Dia 0.7000 17.78MM
Flutes/Inserts 4
Thread Pitch 18.00TPI
Thread Size 3/8"
Tap Drill Range 0.5622 14.28MM
Tap Square 0.5310
Performance & Capacity
Cut Rating Aluminum, Brass, Stainless Steel, <40HRC Steel, Copper, Ductile Iron, Gray Iron
Performance Rating High Performance
Tolerances & Accuracy
Thread Limit PIPE
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSS
Coating TIN
Standards & Identification
Dimension Standard ANSI/ANSI
