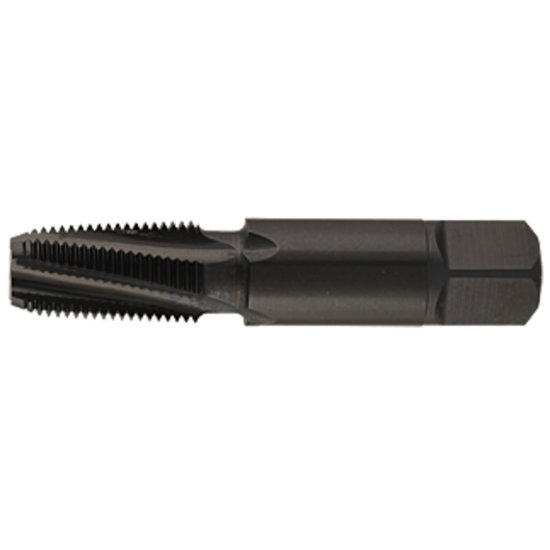

Picture of YMW 383640OX 1/16-27.00TPI Pipe Spiral Flute Pipe HSS Steam Oxide

YMW 383640OX 1/16-27.00TPI Pipe Spiral Flute Pipe HSS Steam Oxide

Part Number: YMW383640OX
Looking for alternatives…
Find a drill for this tap 1/16" × 27.00TPI
% of thread 75%
Target drill —
Drill products available across the % thread range 0 drills
50% 90%
Closest drill
—
View this drill →
Heads up: the drill list shows every drill within ±5% thread of your selection (so diameters vary across that band). Pick a drill closer to the target for higher % thread, or a larger one for easier tapping at lower %.

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1173649
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing

Description

YMW 1/16"x27.00TPI Pipe Spiral Flute Pipe HSS Steam Oxide PIPE NPT/NPTF/ANPT Steel The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.
Products specifications
Attribute name Attribute value
General Information
Shipping State California
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type NPT/NPTF/ANPT
Flute Direction RIGHT
Tap Style Pipe Spiral Flute
Tap Type Pipe
Dimensions & Sizing
Overall Length 2.1250 53.98MM
Shank/Pilot Dia 0.3125 7.93MM - 5/16
Flutes/Inserts 4
Thread Pitch 27.00TPI
Thread Size 1/16"
Tap Drill Range 0.2417 6.14MM
Tap Square 0.2340
Performance & Capacity
Cut Rating Aluminum, Brass, Stainless Steel, <40HRC Steel, Copper, Ductile Iron, Gray Iron
Performance Rating High Performance
Tolerances & Accuracy
Thread Limit PIPE
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSS
Coating Steam Oxide
Standards & Identification
Dimension Standard ANSI/ANSI
