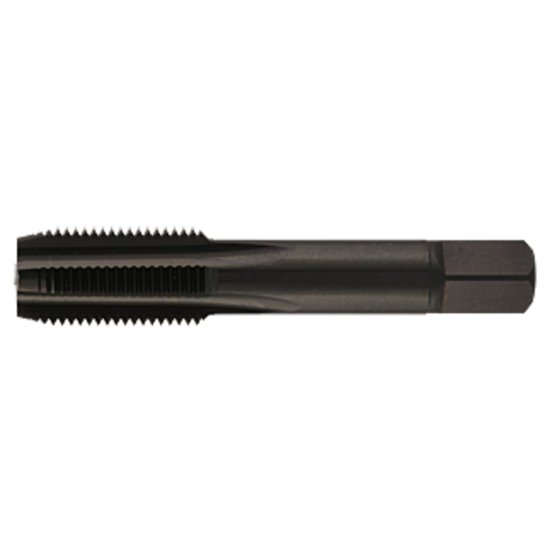

Picture of YMW 383332BR 1-11.50TPI Pipe Straight Flute Pipe HSS Uncoated

YMW 383332BR 1-11.50TPI Pipe Straight Flute Pipe HSS Uncoated

Part Number: YMW383332BR
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
Call (262) 251-4020 for pricing
SKU: 1173645

Description

YMW 1"x11.50TPI Pipe Straight Flute Pipe HSS Uncoated PIPE NPSM/NPSF Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State California
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type NPSM/NPSF
Flute Direction STRAIGHT
Tap Style Pipe Straight Flute
Tap Type Pipe
Dimensions & Sizing
Overall Length 3.7520 95.30MM
Shank/Pilot Dia 1.1250 28.58MM - 1-1/8
Flutes/Inserts 5
Thread Pitch 11.50TPI
Thread Size 1"
Tap Drill Range 1.1406 28.97MM
Tap Square 0.8390
Performance & Capacity
Cut Rating Aluminum, Brass, Stainless Steel, <40HRC Steel, Copper, Ductile Iron, Gray Iron
Performance Rating High Performance
Tolerances & Accuracy
Thread Limit PIPE
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSS
Standards & Identification
Dimension Standard ANSI/ANSI
