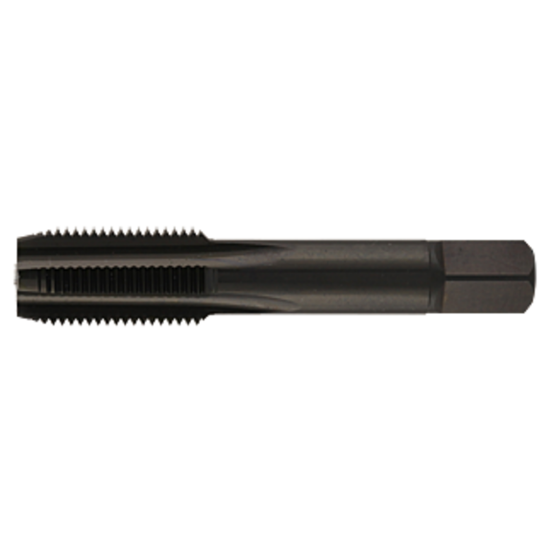

YMW 383331OX 3/4-14.00TPI Pipe Straight Flute Pipe HSS Steam Oxide

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YMW
SKU: YMW383331OX
Delivery date: 3-5 days
$137.27

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.

Products specifications
Attribute name Attribute value
General Product Information
Application Tapping, Straight Flute Pipe, Pipe Tapping
Coating Steam Oxide
Performance Rating High Performance
Made In USA No
Shipping State California
Package Size 1
Dimensional Specifications
Thread Size 3/4"
Tap Style Pipe Straight Flute
Drill Range 0.9374 23.81MM
Length Type Standard
Thread Pitch 14.00TPI
Flute Direction STRAIGHT
Cut Rating <40HRC Steel, Aluminum, Brass, Copper, Ductile Iron, Gray Iron, Stainless Steel
Machine Side Connection Type Tap Collet
Tap Type Pipe
Dimension Standard ANSI/ANSI
Shank/Pilot Dia 0.9063 23.02MM - 29/32
Overall Len 3.2520 82.60MM
Thread Limit PIPE
Tap Square 0.6790
Thread Type NPSM/NPSF
Tool Material Steel
Flutes/Inserts 5
Cutting & Machining Properties
Cutting Edge Mat HSS
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
