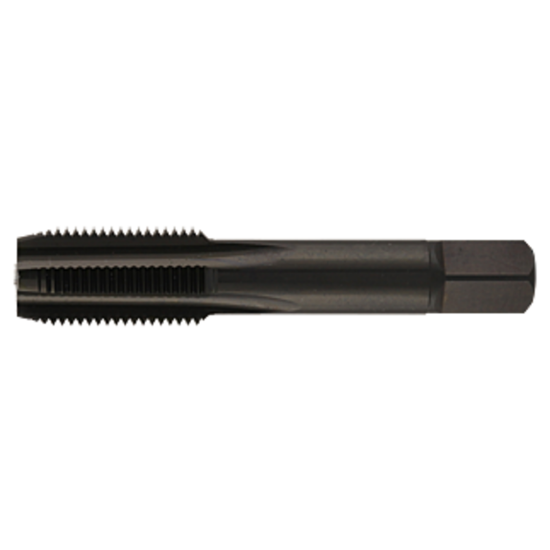

YMW 383328TIN 1/4-18.00TPI Pipe Straight Flute Pipe HSS TiN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YMW
SKU: YMW383328TIN
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Application Tapping, Straight Flute Pipe, Pipe Tapping
Coating TiN
Made In USA No
Shipping State California
Package Size 1
Performance Rating High Performance
Dimensional Specifications
Dimension Standard ANSI/ANSI
Thread Type NPSM/NPSF
Tool Material Steel
Machine Side Connection Type Tap Collet
Tap Type Pipe
Shank/Pilot Dia 0.5625 14.29MM - 9/16
Length Type Standard
Thread Pitch 18.00TPI
Thread Limit PIPE
Cut Rating <40HRC Steel, Aluminum, Brass, Copper, Ductile Iron, Gray Iron, Stainless Steel
Thread Size 1/4"
Flute Direction STRAIGHT
Tap Square 0.4210
Flutes/Inserts 4
Overall Len 2.4370 61.90MM
Drill Range 0.4528 11.50MM
Tap Style Pipe Straight Flute
Cutting & Machining Properties
Cutting Edge Mat HSS
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
