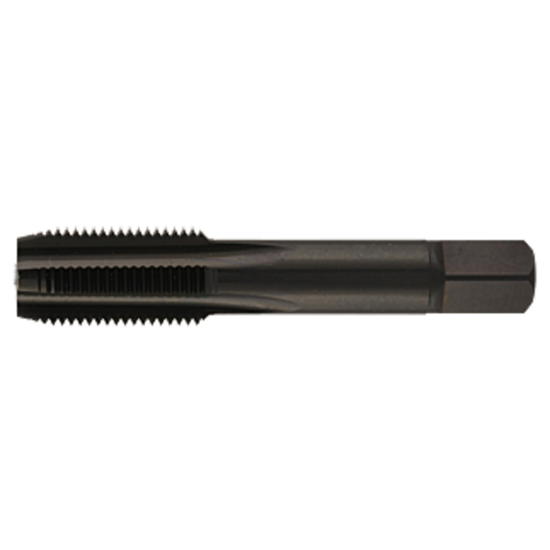

YMW 383328BR 1/4-18.00TPI Pipe Straight Flute Pipe HSS Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YMW
SKU: YMW383328BR
Delivery date: 3-5 days
$46.47

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Application Straight Flute Pipe, Pipe Tapping, Tapping
Made In USA No
Shipping State California
Package Size 1
Performance Rating High Performance
Dimensional Specifications
Overall Len 2.4370 61.90MM
Tap Style Pipe Straight Flute
Thread Size 1/4"
Tap Square 0.4210
Shank/Pilot Dia 0.5625 14.29MM - 9/16
Length Type Standard
Flute Direction STRAIGHT
Tap Type Pipe
Flutes/Inserts 4
Thread Type NPSM/NPSF
Tool Material Steel
Thread Pitch 18.00TPI
Thread Limit PIPE
Cut Rating <40HRC Steel, Aluminum, Brass, Copper, Ductile Iron, Gray Iron, Stainless Steel
Machine Side Connection Type Tap Collet
Dimension Standard ANSI/ANSI
Drill Range 0.4528 11.50MM
Cutting & Machining Properties
Cutting Edge Mat HSS
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
