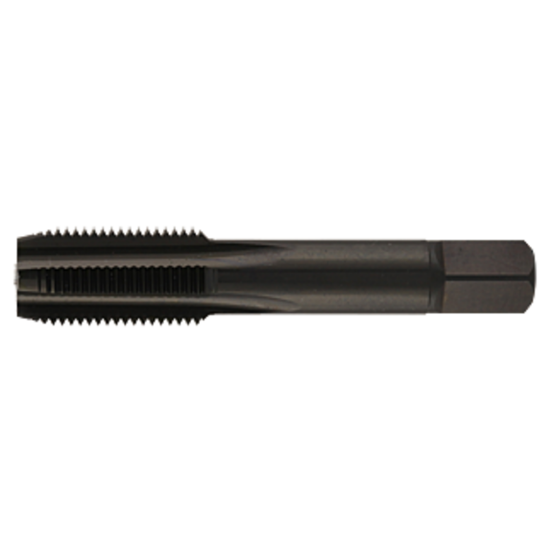

YMW 383327TIN 1/8-27.00TPI Pipe Straight Flute Pipe HSS TiN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YMW
SKU: YMW383327TIN
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Performance Rating High Performance
Application Pipe Tapping, Straight Flute Pipe, Tapping
Package Size 1
Coating TiN
Made In USA No
Shipping State California
Dimensional Specifications
Thread Pitch 27.00TPI
Flute Direction STRAIGHT
Overall Len 2.1250 53.98MM
Tap Style Pipe Straight Flute
Thread Limit PIPE
Cut Rating <40HRC Steel, Aluminum, Brass, Copper, Ductile Iron, Gray Iron, Stainless Steel
Thread Type NPSM/NPSF
Tool Material Steel
Drill Range 0.3476 8.83MM
Tap Square 0.2340
Shank/Pilot Dia 0.3120 7.92MM
Flutes/Inserts 4
Thread Size 1/8"
Machine Side Connection Type Tap Collet
Tap Type Pipe
Length Type Standard
Dimension Standard ANSI/ANSI
Cutting & Machining Properties
Cutting Edge Mat HSS
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
