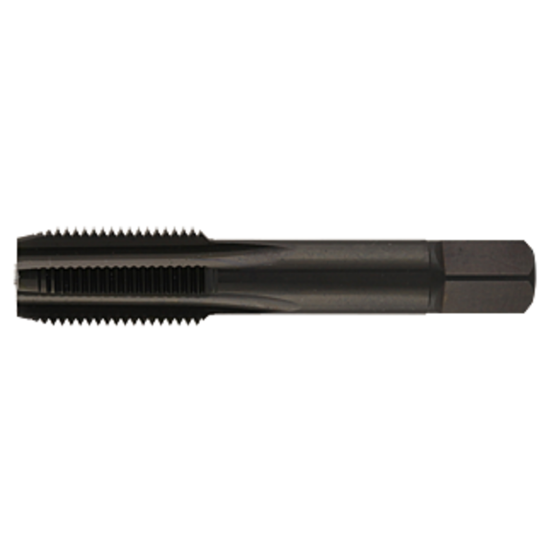

YMW 383326OX 1/8-27.00TPI Pipe Straight Flute Pipe HSS Steam Oxide

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YMW
SKU: YMW383326OX
Delivery date: 3-5 days
$37.37

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Shipping State California
Application Tapping, Pipe Tapping, Straight Flute Pipe
Coating Steam Oxide
Performance Rating High Performance
Package Size 1
Dimensional Specifications
Overall Len 2.1250 53.98MM
Drill Range 0.3476 8.83MM
Tap Square 0.2340
Tap Style Pipe Straight Flute
Shank/Pilot Dia 0.3120 7.92MM
Flutes/Inserts 4
Length Type Standard
Dimension Standard ANSI/ANSI
Thread Size 1/8"
Thread Pitch 27.00TPI
Flute Direction STRAIGHT
Tap Type Pipe
Thread Limit PIPE
Cut Rating <40HRC Steel, Aluminum, Brass, Copper, Ductile Iron, Gray Iron, Stainless Steel
Machine Side Connection Type Tap Collet
Thread Type NPSM/NPSF
Tool Material Steel
Cutting & Machining Properties
Cutting Edge Mat HSS
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
