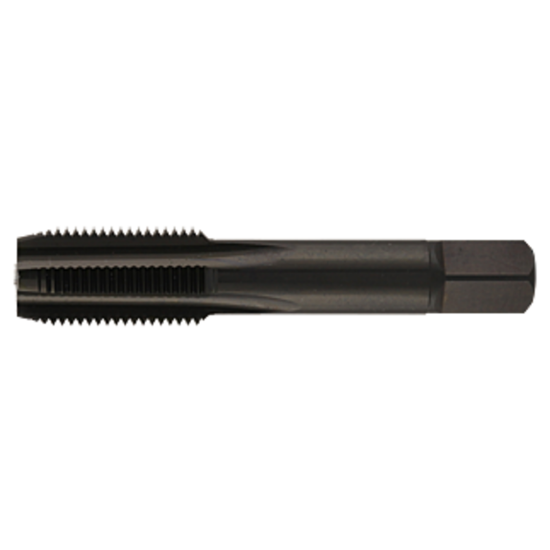

YMW 383305TIN 1/2-14.00TPI Pipe Straight Flute Pipe HSS TiN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YMW
SKU: YMW383305TIN
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Application Tapping, Straight Flute Pipe, Pipe Tapping
Performance Rating High Performance
Coating TiN
Made In USA No
Shipping State California
Package Size 1
Dimensional Specifications
Dimension Standard ANSI/ANSI
Shank/Pilot Dia 0.6870 17.45MM
Drill Range 0.7480 19.00MM
Flute Direction STRAIGHT
Tap Type Pipe
Tool Material Steel
Thread Pitch 14.00TPI
Cut Rating <40HRC Steel, Aluminum, Brass, Copper, Ductile Iron, Gray Iron, Stainless Steel
Machine Side Connection Type Tap Collet
Flutes/Inserts 4
Tap Square 0.5150
Length Type Standard
Thread Limit PIPE
Thread Size 1/2"
Thread Type NPSM/NPSF
Overall Len 3.1260 79.40MM
Tap Style Pipe Straight Flute
Cutting & Machining Properties
Cutting Edge Mat HSS
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
