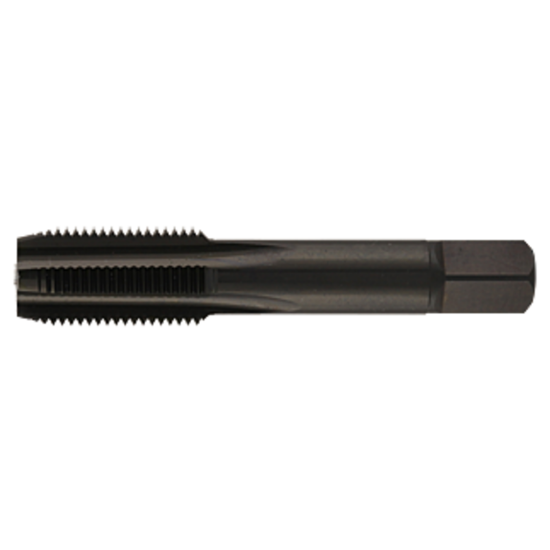

YMW 383304OX 3/8-18.00TPI Pipe Straight Flute Pipe HSS Steam Oxide

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YMW
SKU: YMW383304OX
Delivery date: 3-5 days
$61.61

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.

Products specifications
Attribute name Attribute value
General Product Information
Application Straight Flute Pipe, Tapping, Pipe Tapping
Made In USA No
Shipping State California
Coating Steam Oxide
Performance Rating High Performance
Package Size 1
Dimensional Specifications
Length Type Standard
Thread Pitch 18.00TPI
Thread Limit PIPE
Cut Rating <40HRC Steel, Aluminum, Brass, Copper, Ductile Iron, Gray Iron, Stainless Steel
Tap Style Pipe Straight Flute
Flute Direction STRAIGHT
Machine Side Connection Type Tap Collet
Shank/Pilot Dia 0.7000 17.78MM
Overall Len 2.5620 65.07MM
Drill Range 0.5937 15.08MM
Tap Square 0.5310
Tap Type Pipe
Dimension Standard ANSI/ANSI
Thread Type NPSM/NPSF
Tool Material Steel
Thread Size 3/8"
Flutes/Inserts 4
Cutting & Machining Properties
Cutting Edge Mat HSS
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
